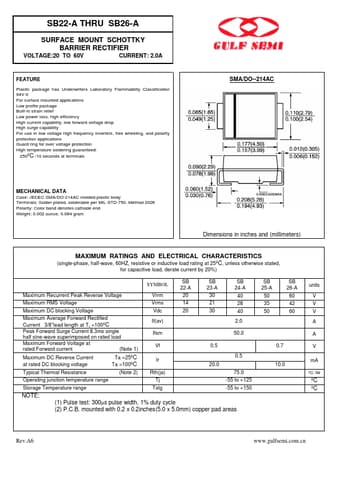

SB22-A THRU SB26-A
SURFACE MOUNT SCHOTTKY
BARRIER RECTIFIER
VOLTAGE:20 TO 60V
CURRENT: 2.0A
FEATURE
Plastic package has Underwriters Laboratory Flammability Classification 94V-0 For surface mounted applications Low profile package Built-in strain relief Low power loss, high efficiency High current capability, low forward voltage drop High surge capability For use in low voltage high frequency inverters, free wheeling, and polarity protection applications Guard ring for over voltage protection High temperature soldering guaranteed:
250ºC /10 seconds at terminals
SMA/DO--214AC
MECHANICAL DATA
Case: JEDEC SMA/DO-214AC molded plastic body Terminals: Solder plated, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Weight: 0.002 ounce, 0.
