HM2010 Datasheet - H&M Semiconductor

HM2010 3W Low EMI Class-D Audio Power Amplifier

The HM2010 is a high efficiency, low EMI, filterless Class-D audio amplifier with auto-recovering short-circuit protection. It operates from 2.7V to 5.5V supply. When powered with 5V voltage, the HM2010 can deliver up to 3W into a 4Ω load or 1.8W into an 8Ω load at 10% THD+N. As a Class-D audio ampl.

HM2010 Features

* 90% high efficiency and 75dB PSRR at 217Hz which make the device ideal for battery-powered high quality audio applications. One of the key benefits of the HM2010 over traditional Class-D audio amplifiers is it generates much lower EMI emissions, thus greatly simplifying the system design for use in

HM2010-HMSemiconductor.pdf

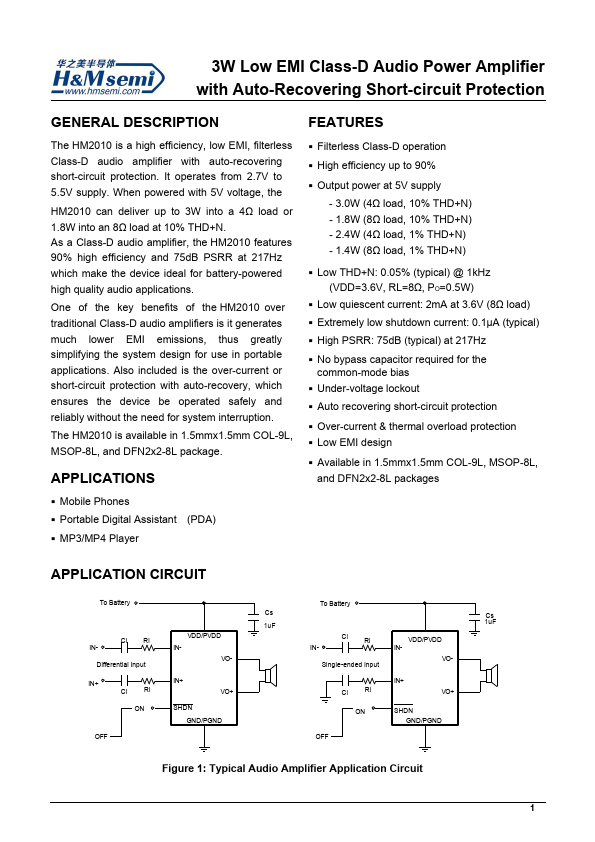

Preview of HM2010 PDF

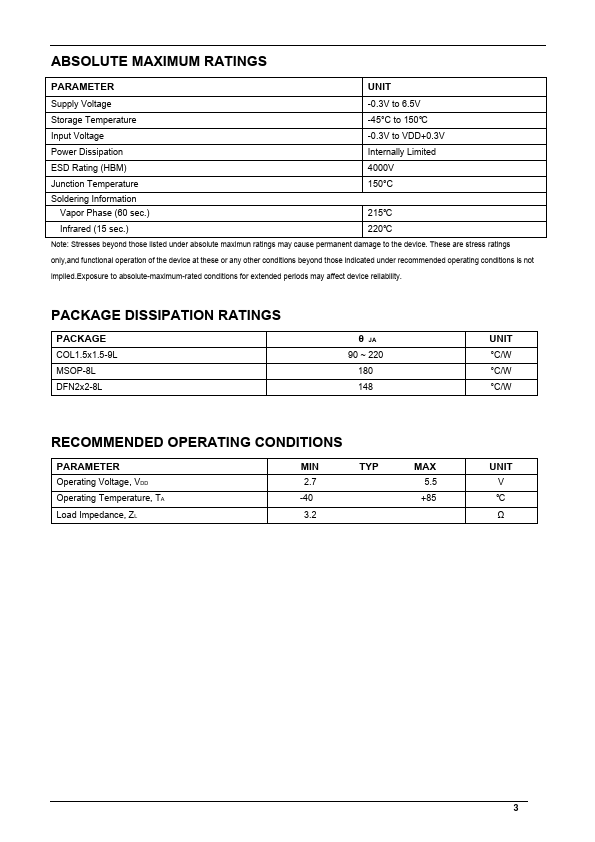

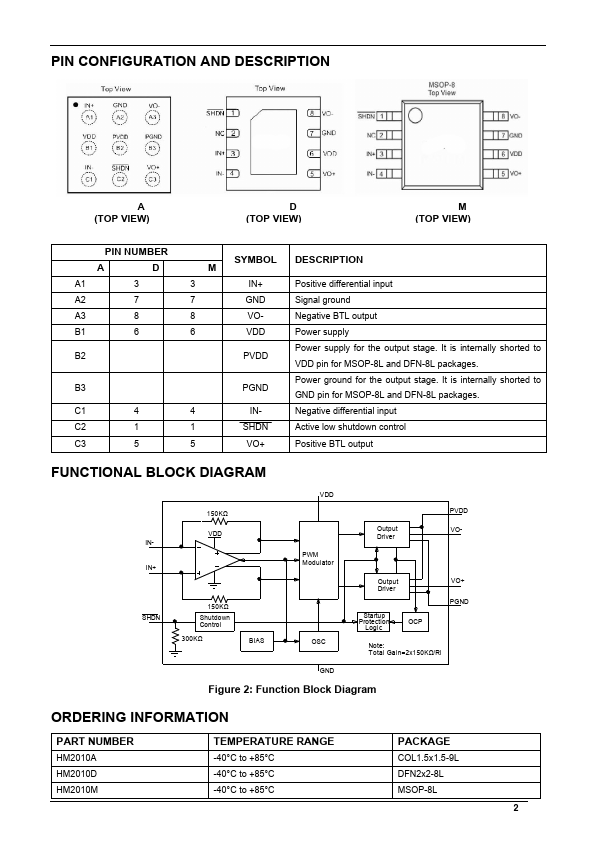

HM2010 Datasheet Preview Page 2 HM2010 Datasheet Preview Page 3

Datasheet Details

Part number:

HM2010

Manufacturer:

H&M Semiconductor

File Size:

0.98 MB

Description:

3w low emi class-d audio power amplifier.
