HM2809D - 60V P-Channel power field effect transistors

H&M Semiconductor

📥 Download Datasheet

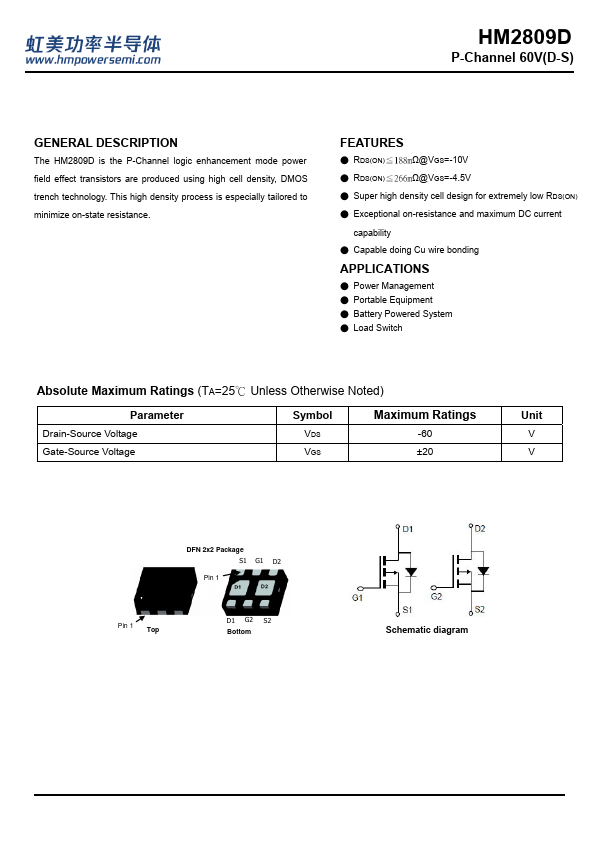

HM2809D Datasheet Preview — Preview of HM2809D PDF

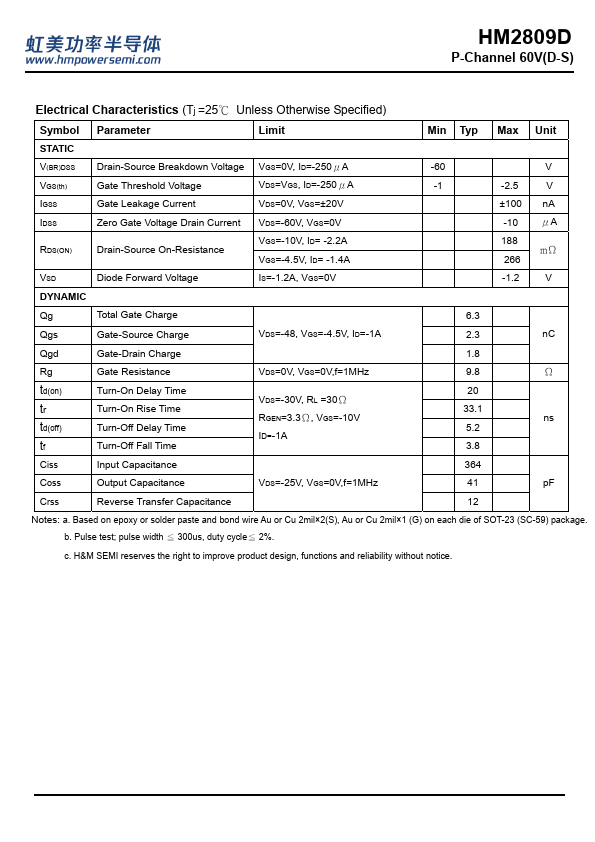

datasheet Preview Page 2

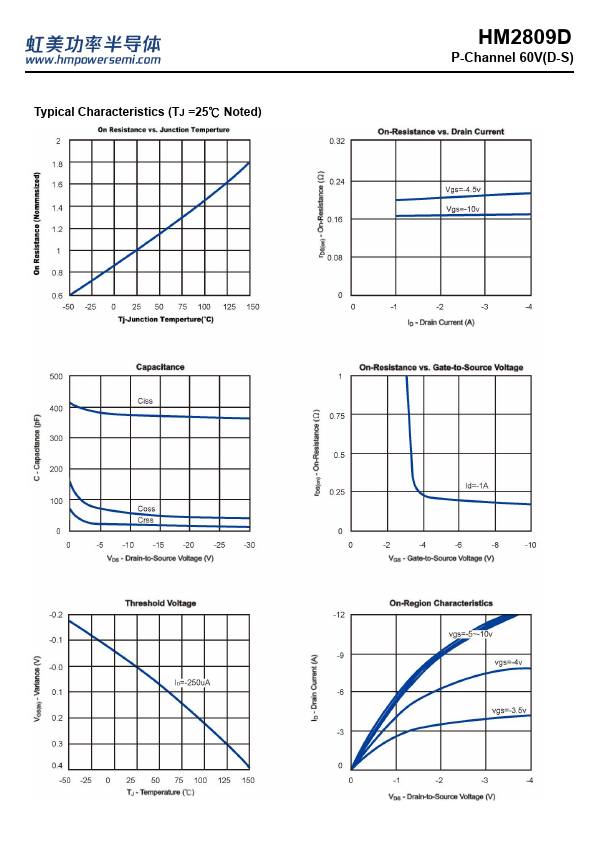

datasheet Preview Page 3

Datasheet Details

Part number	HM2809D
Manufacturer	H&M Semiconductor
File Size	1.01 MB
Description	60V P-Channel power field effect transistors
Datasheet	HM2809D-HMSemiconductor.pdf

HM2809D Product details

Description

The HM2809D is the P-Channel logic enhancement mode power field effect transistors are produced using high cell density, DMOS trench technology.

Features

RDS(ON)≦188mΩ@VGS=-10V.
RDS(ON)≦266mΩ@VGS=-4.5V.
Super high density cell design for extremely low RDS(ON).
Exceptional on-resistance and maximum DC current capability.
Capable doing Cu wire bonding.
