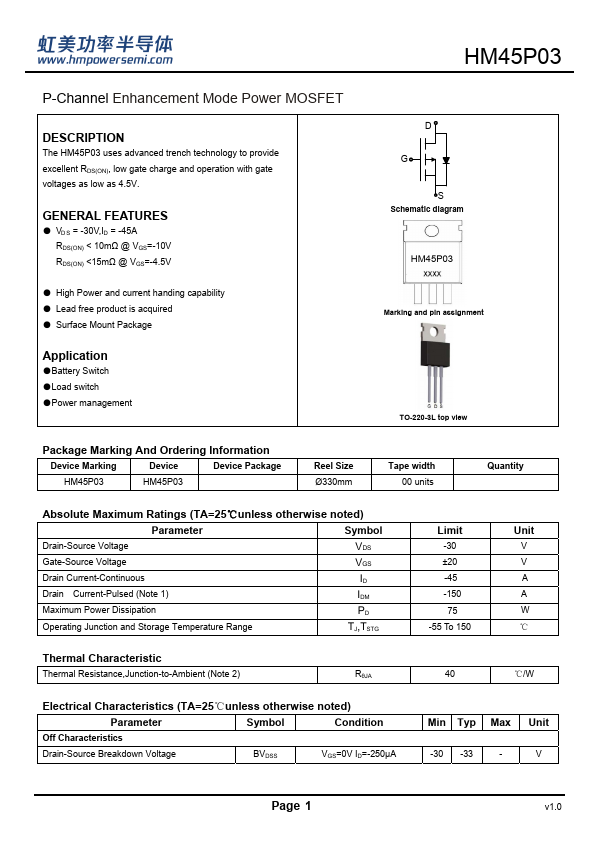

HM45P03
DESCRIPTION
The HM45P03 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 4.5V.
GENERAL FEATURES
- VDS = -30V,ID = -45A RDS(ON) < 10mΩ @ VGS=-10V RDS(ON) <15mΩ @ VGS=-4.5V
- High Power and current handing capability
- Lead free product is acquired
- Surface Mount Package
Schematic diagram
Marking and pin assignment
Application
- Battery Switch
- Load switch
- Power management
TO-220-3L top view
Package Marking And Ordering Information
Device Marking
Device
Device Package
72/
Reel Size
Tape width
Quantity
Ø330mm00 units PP
Absolute Maximum Ratings (TA=25℃unless otherwise noted)
Parameter
Symbol
Drain-Source Voltage
Gate-Source Voltage
Drain Current-Continuous
Drain Current-Pulsed (Note 1)
Maximum Power Dissipation
Operating Junction and Storage Temperature Range
TJ,TST...
