HM45P03K P-Channel Enhancement Mode Power MOSFET

H&M Semiconductor

Description

P-Channel Enhancement Mode Power MOSFET .
The HM45P03K uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 4.

📥 Download Datasheet

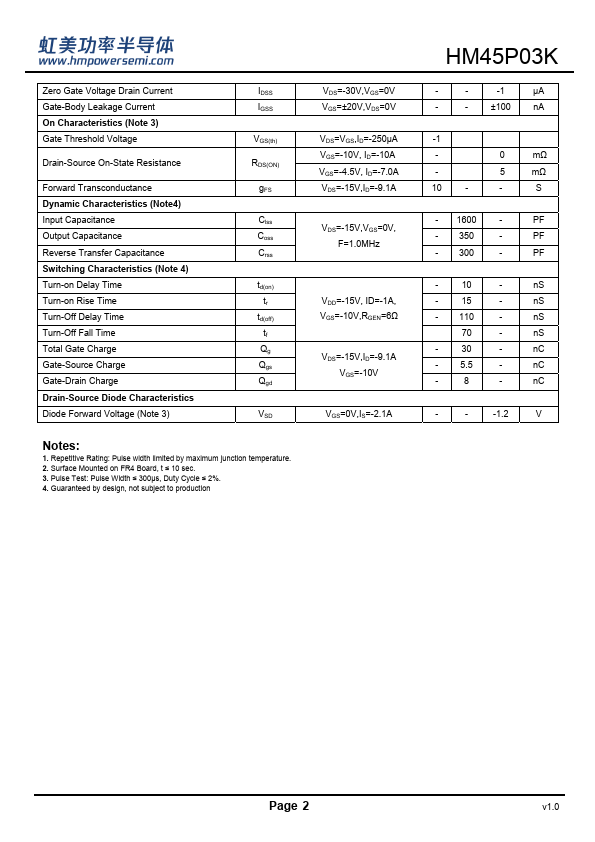

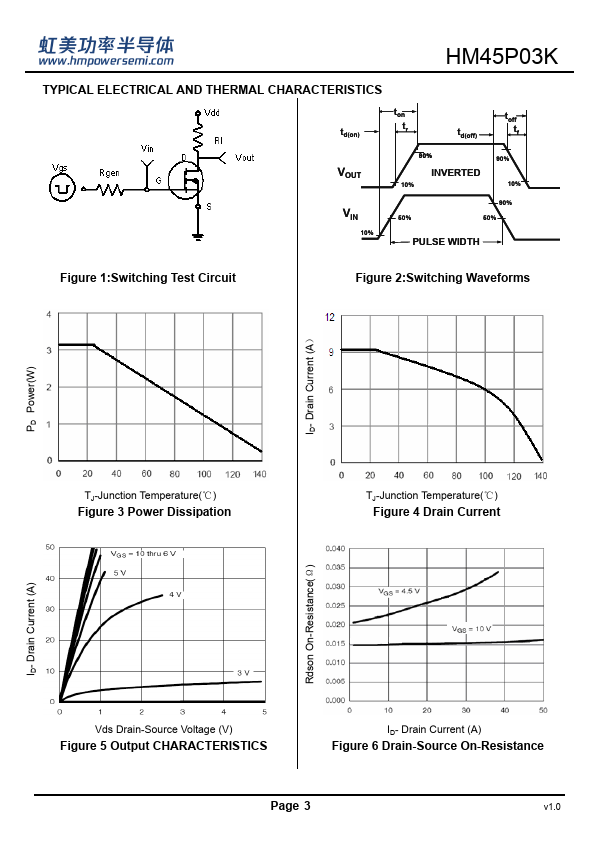

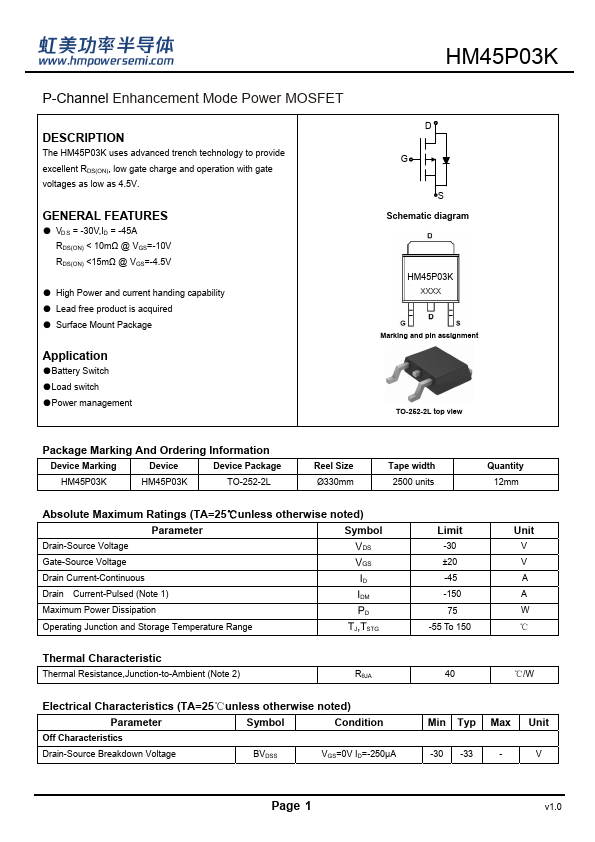

HM45P03K Datasheet Preview — Preview of HM45P03K PDF

Datasheet Specifications

Part number: HM45P03K
Manufacturer: H&M Semiconductor
File Size: 731.22 KB
Datasheet: HM45P03K-HMSemiconductor.pdf
Description: P-Channel Enhancement Mode Power MOSFET

Features

* VDS = -30V,ID = -45A RDS(ON) < 10mΩ @ VGS=-10V RDS(ON)
