HM4N65I, HM4N65K 650V N-Channel MOSFET

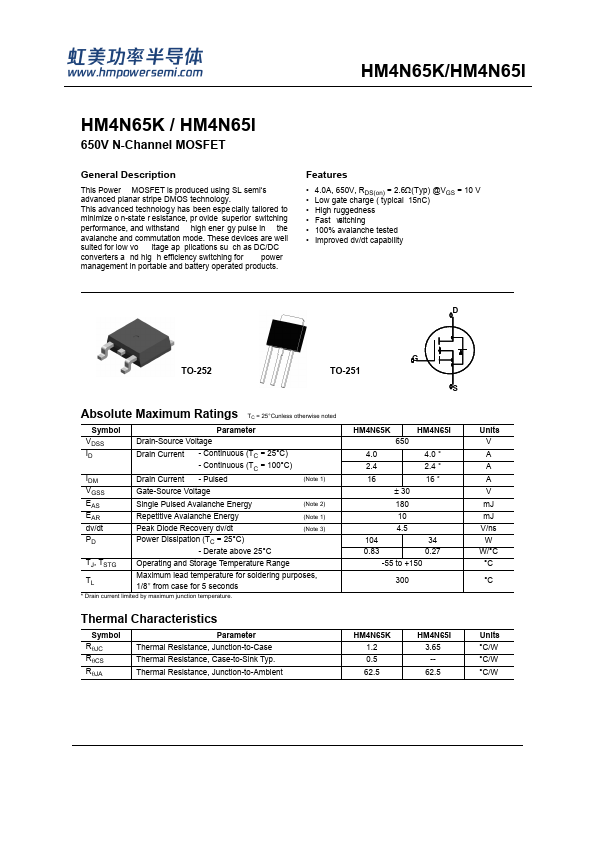

📥 Download Datasheet Datasheet Preview Page 1

Description

HM4N65K/HM4N65I HM4N65K / HM4N65I 650V N-Channel MOSFET General .
This Power MOSFET is produced using SL semi‘s advanced planar stripe DMOS technology.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HM4N65I, HM4N65K. Please refer to the document for exact specifications by model.

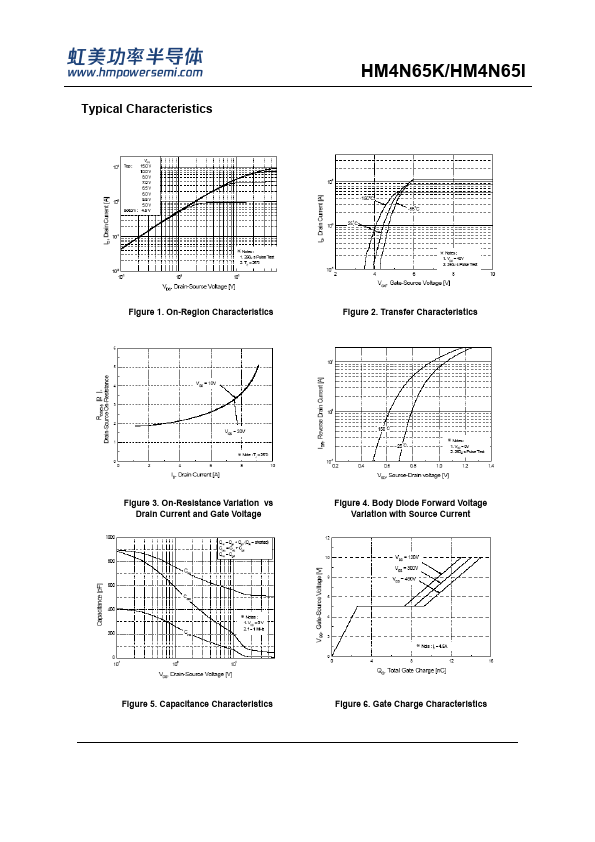

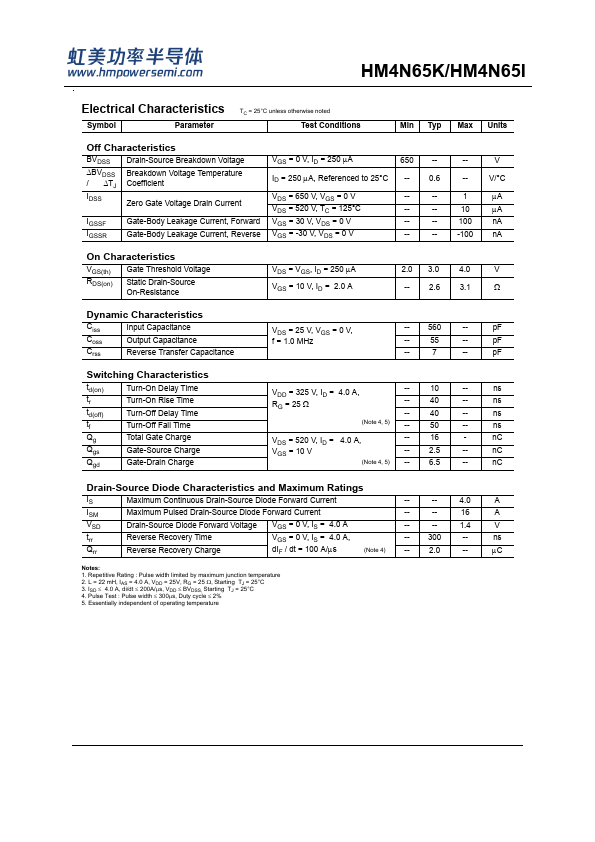

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
HM4N65I, HM4N65K
Manufacturer
H&M Semiconductor
File Size
681.45 KB
Datasheet
HM4N65K-HMSemiconductor.pdf
Description
650V N-Channel MOSFET
Note
This datasheet PDF includes multiple part numbers: HM4N65I, HM4N65K.
Please refer to the document for exact specifications by model.

Features

* 4.0A, 650V, RDS(on) = 2.6(Typ) @VGS = 10 V
* Low gate charge ( typical 15nC)
* High ruggedness
* Fast wsitching
* 100% avalanche tested
* Improved dv/dt capability {D TO-252 TO-251
* ◀▲ {G
* {S Absolute Maximum Ratings TC = 2
