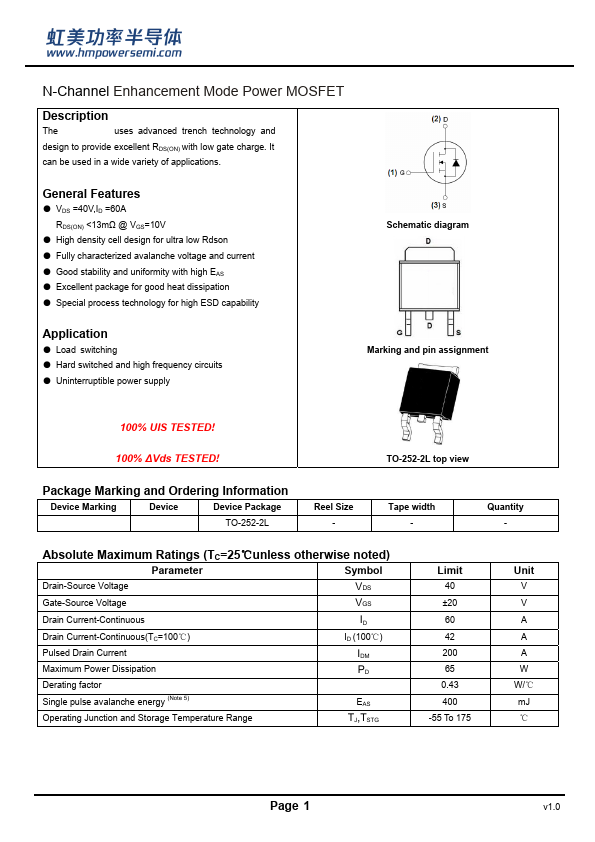

HM60N04K
Description
The +01. uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge. It can be used in a wide variety of applications.
General Features
- VDS =40V,ID =60A RDS(ON) <13mΩ @ VGS=10V
- High density cell design for ultra low Rdson
- Fully characterized avalanche voltage and current
- Good stability and uniformity with high EAS
- Excellent package for good heat dissipation
- Special process technology for high ESD capability
Schematic diagram +01.
Application
- Load switching
- Hard switched and high frequency circuits
- Uninterruptible power supply
Marking and pin assignment
100% UIS TESTED!
100% ∆Vds TESTED!
TO-252-2L top view
Package Marking and Ordering Information
Device Marking
Device
Device Package
+01.
+01.
TO-252-2L
Reel Size
- Tape width
- Quantity
- Absolute Maximum Ratings (TC=25℃unless otherwise noted)
Parameter
Symbol
Drain-Source Voltage
Gate-Source Voltage
Drain Current-Continuous...
