HM840 - 500V N-Channel MOSFET

HM840 Description

HM840 / HM840F +0840 / +0840F 500V N-Channel MOSFET General .
This Power MOSFET is produced using SL semi‘s advanced planar stripe DMOS technology.

HM840 Features

* 9.0A, 500V, RDS(on) = 0.85Ω @VGS = 10 V
* Low gate charge ( typical 30nC)
* Fast switching
* 100% avalanche tested
* Improved dv/dt capability {D GDS TO-220 GD S TO-220F
* ◀▲ {G
* {S Absolute Maximum Ratings TC = 25°Cunless otherwis

📥 Download Datasheet

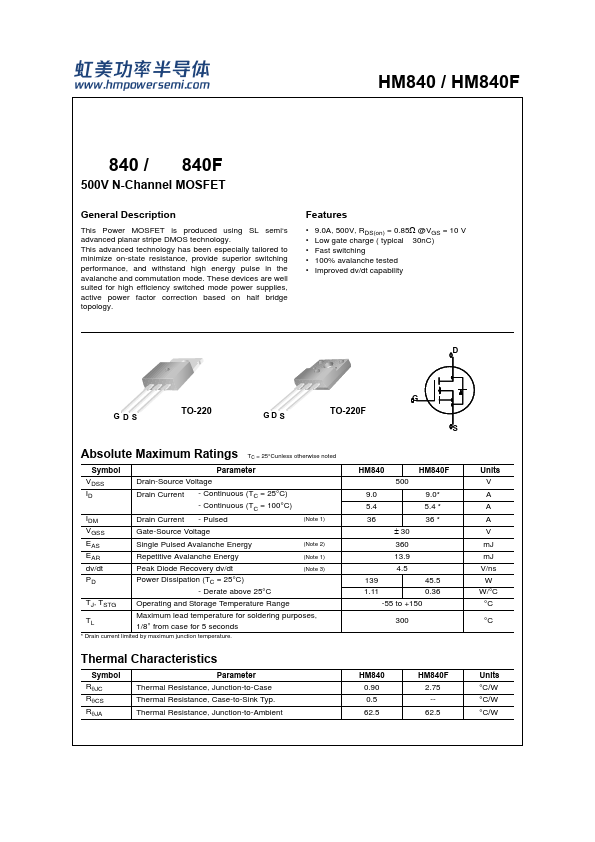

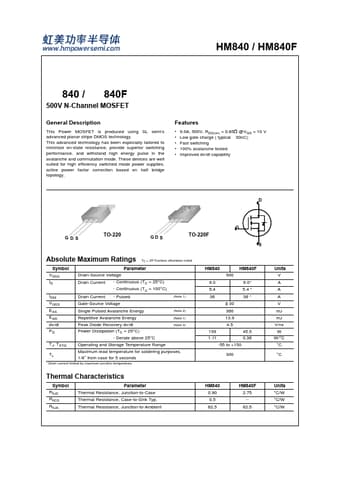

Preview of HM840 PDF

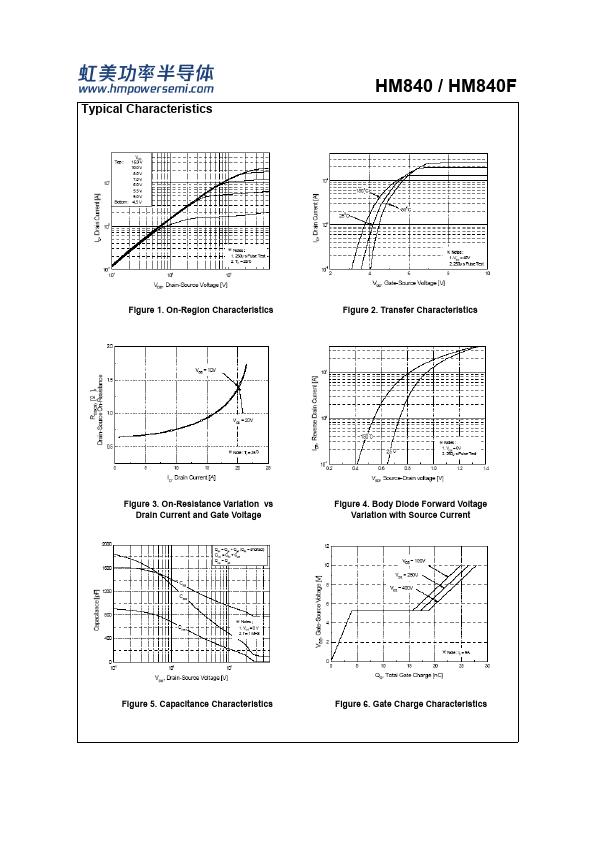

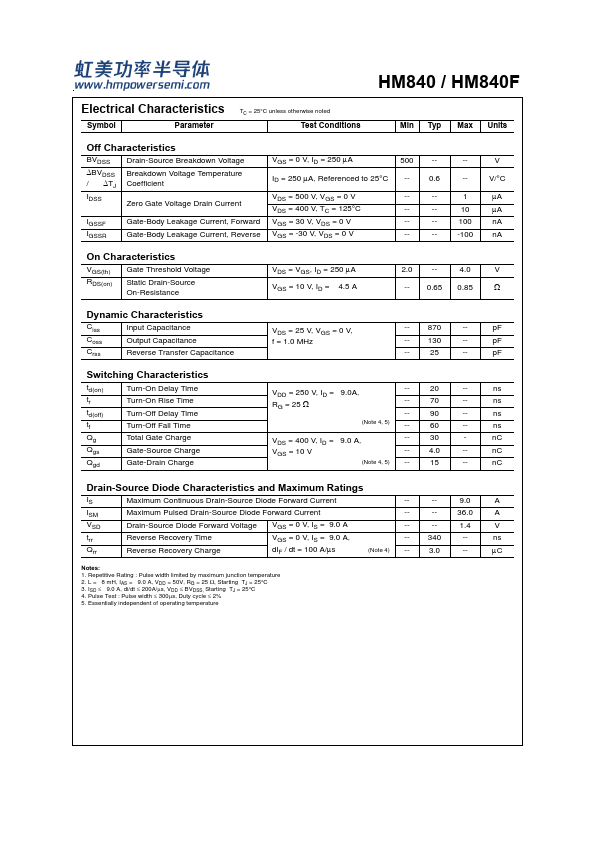

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HM840
Manufacturer
H&M Semiconductor
File Size
297.89 KB
Datasheet
HM840-HMSemiconductor.pdf
Description
500V N-Channel MOSFET
