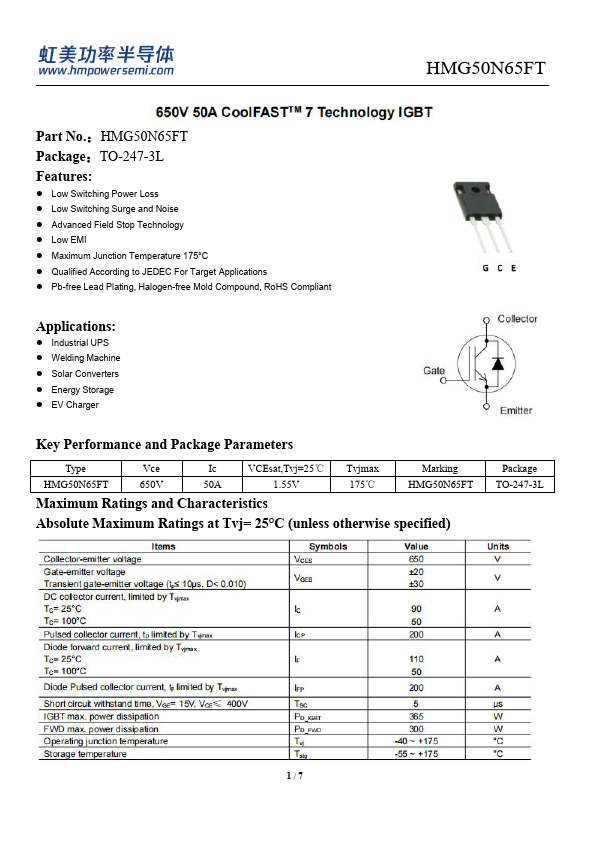

HMG50N65FT
Features
:
- Low Switching Power Loss
- Low Switching Surge and Noise
- Advanced Field Stop Technology
- Low EMI
- Maximum Junction Temperature 175°C
- Qualified According to JEDEC For Target Applications
- Pb-free Lead Plating, Halogen-free Mold pound, Ro HS pliant
Applications:
- Industrial UPS
- Welding Machine
- Solar Converters
- Energy Storage
- EV Charger
Key Performance and Package Parameters
Type
Vce
Ic
VCEsat,Tvj=25℃ Tvjmax
Marking
650V
50A
1.55V
175℃
Maximum Ratings and Characteristics
Absolute Maximum Ratings at Tvj= 25°C (unless otherwise specified)
Package TO-247-3L
1/7
HMG1)7

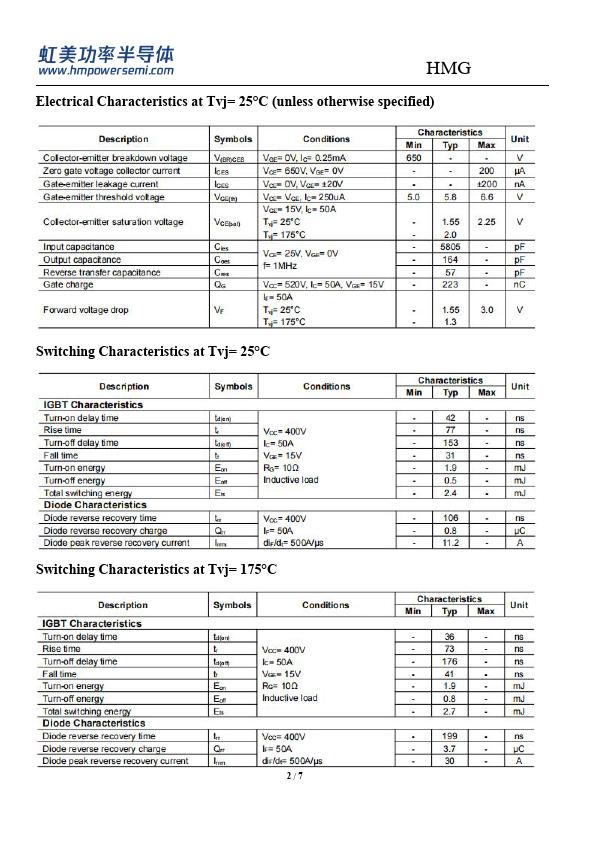

Electrical Characteristics at Tvj= 25°C (unless otherwise specified)
Switching Characteristics at Tvj= 25°C
Switching Characteristics at Tvj= 175°C
2/7

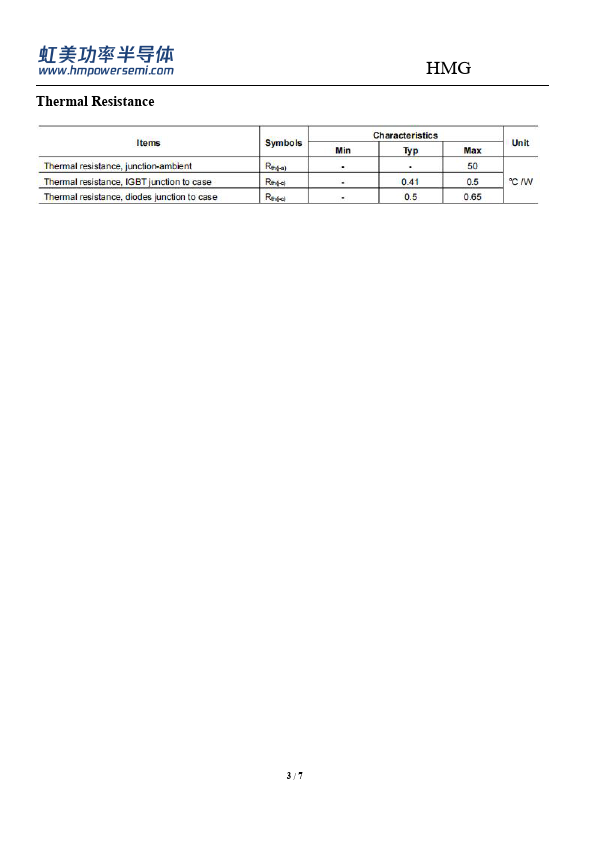

Thermal Resistance
HMG1)7
3/7
HMG1)7
4/7
HMG1)7...
