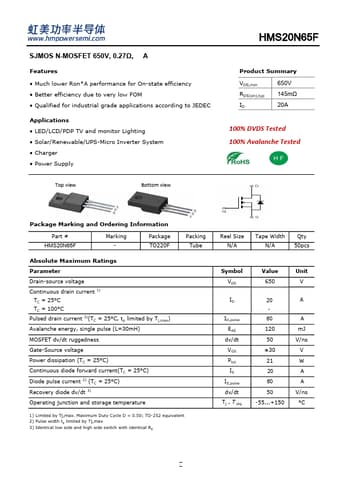

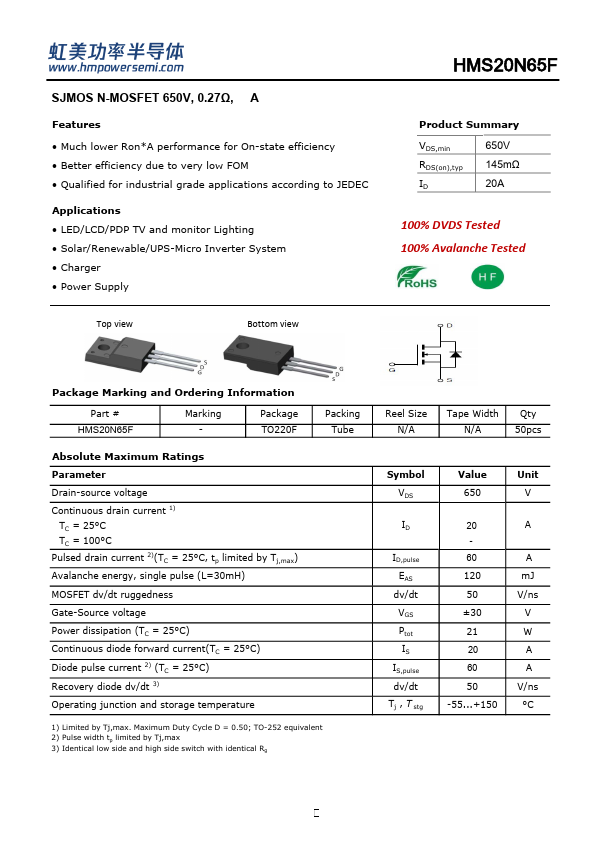

HMS20N65F
Features
- Much lower Ron- A performance for On-state efficiency
- Better efficiency due to very low FOM
- Qualified for industrial grade applications according to JEDEC
Applications
- LED/LCD/PDP TV and monitor Lighting
- Solar/Renewable/UPS-Micro Inverter System
- Charger
- Power Supply
Top view
Bottom view
Product Summary
VDS,min RDS(on),typ ID
650V 145mΩ 20A
100% DVDS Tested 100% Avalanche Tested
Package Marking and Ordering Information
Part # HMS20N65F
Marking
- Package TO220F
Packing Tube
Absolute Maximum Ratings Parameter Drain-source voltage Continuous drain current 1)
TC = 25°C TC = 100°C Pulsed drain current 2)(TC = 25°C, tp limited by Tj,max) Avalanche energy, single pulse (L=30m H)
MOSFET dv/dt ruggedness
Gate-Source voltage Power dissipation (TC = 25°C) Continuous diode forward current(TC = 25°C) Diode pulse current 2) (TC = 25°C) Recovery diode dv/dt 3) Operating junction and storage temperature
1) Limited by Tj,max. Maximum Duty Cycle D = 0.50;...
