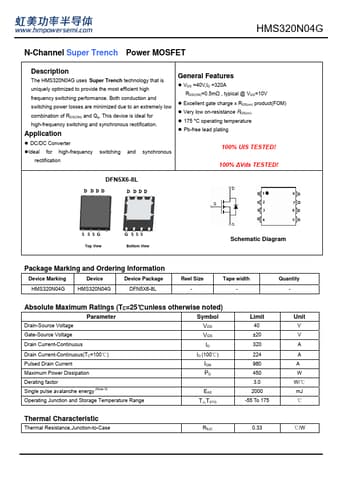

HMS320N04G
Description
The HMS320N04G uses Super Trench technology that is uniquely optimized to provide the most efficient high frequency switching performance. Both conduction and switching power losses are minimized due to an extremely low bination of RDS(ON) and Qg. This device is ideal for high-frequency switching and synchronous rectification.
Application
- DC/DC Converter
- Ideal for high-frequency switching and synchronous rectification
General Features
- VDS =40V,ID =320A
RDS(ON)=0.5mΩ , typical @ VGS=10V
- Excellent gate charge x RDS(on) product(FOM)
- Very low on-resistance RDS(on)
- 175 °C operating temperature
- Pb-free lead plating
100% UIS TESTED!
100% ∆Vds TESTED!
DFN5X6-8L
D DDD
D DDD
S SSG
Top View
G SSS
Bottom View
Schematic Diagram
Package Marking and Ordering Information
Device Marking
Device
Device Package
HMS320N04G HMS320N04G
DFN5X6-8L
Reel Size
- Tape width
- Quantity

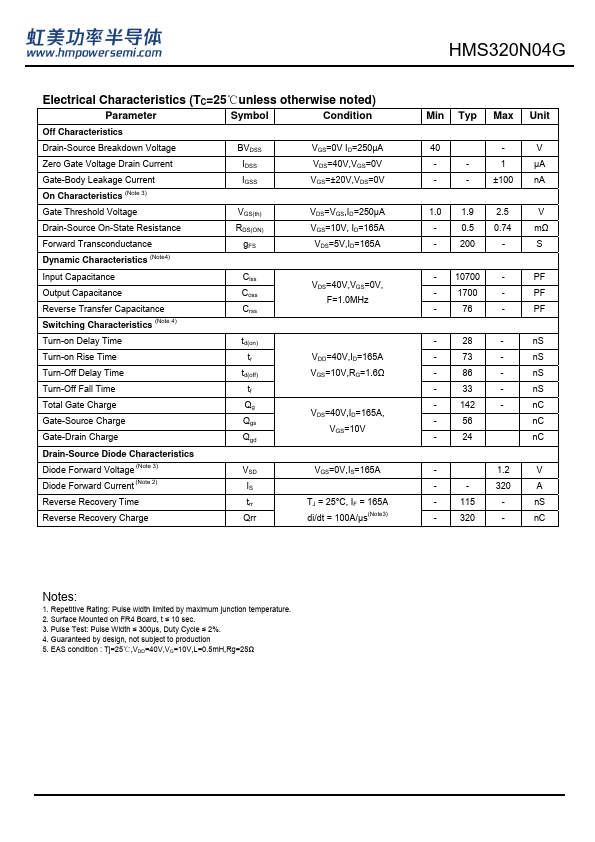

- Absolute Maximum Ratings (TC=25℃unless otherwise noted)
Parameter
Symbol
Drain-Sourc...
