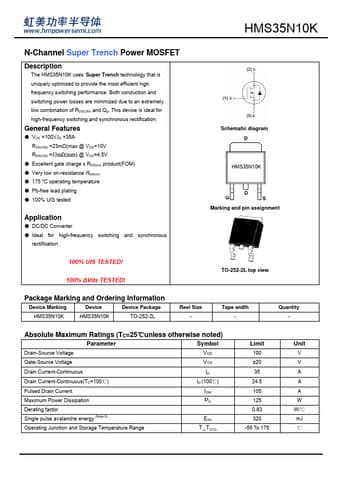

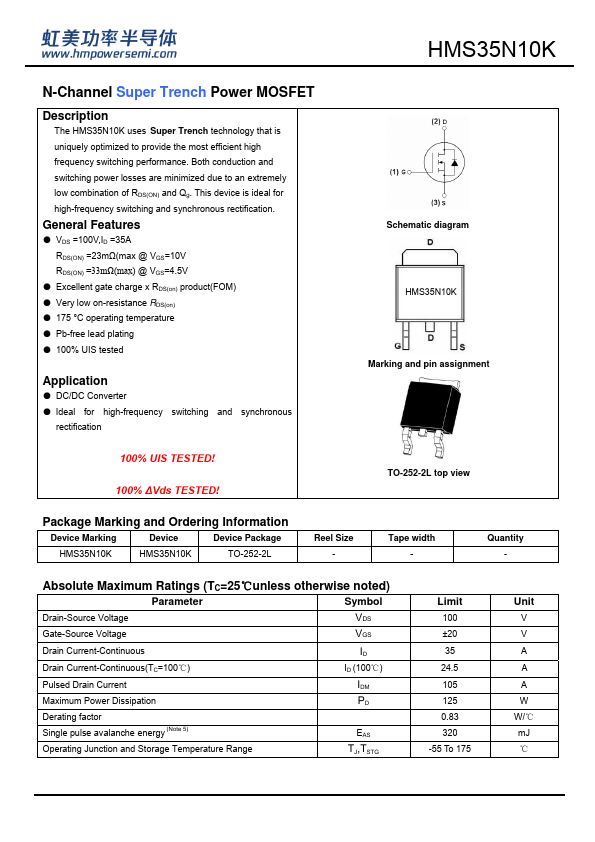

HMS35N10K
Description
The HMS35N10K uses Super Trench technology that is uniquely optimized to provide the most efficient high frequency switching performance. Both conduction and switching power losses are minimized due to an extremely low bination of RDS(ON) and Qg. This device is ideal for high-frequency switching and synchronous rectification.
General Features
- VDS =100V,ID =35A RDS(ON) =23mΩ(max @ VGS=10V RDS(ON) =33mΩ(max) @ VGS=4.5V
- Excellent gate charge x RDS(on) product(FOM)
- Very low on-resistance RDS(on)
- 175 °C operating temperature
- Pb-free lead plating
- 100% UIS tested
Application
- DC/DC Converter
- Ideal for high-frequency switching and synchronous rectification
Schematic diagram HMS35N10K
Marking and pin assignment
100% UIS TESTED! 100% ∆Vds TESTED!
TO-252-2L top view
Package Marking and Ordering Information
Device Marking
Device
Device Package
TO-252-2L
Reel Size
- Tape width
- Quantity
- Absolute Maximum Ratings (TC=25℃unless otherwise...
