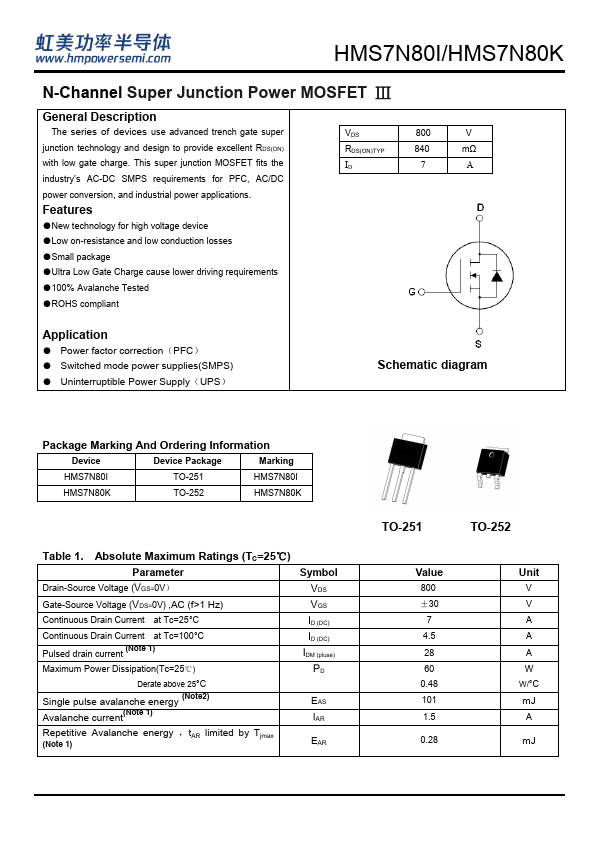

HMS7N80K
Description
The series of devices use advanced trench gate super junction technology and design to provide excellent RDS(ON) with low gate charge. This super junction MOSFET fits the industry’s AC-DC SMPS requirements for PFC, AC/DC power conversion, and industrial power applications.
Features
- New technology for high voltage device
- Low on-resistance and low conduction losses
- Small package
- Ultra Low Gate Charge cause lower driving requirements
- 100% Avalanche Tested
- ROHS pliant
RDS(ON)TYP
840 mΩ
Application
- Power factor correction（PFC）
- Switched mode power supplies(SMPS)
- Uninterruptible Power Supply（UPS）
Schematic diagram
Package Marking And Ordering Information
Device
Device Package
Marking
HMS7N80I
TO-251
HMS7N80I
TO-252
Table 1. Absolute Maximum Ratings (TC=25℃)
Parameter
Symbol
Drain-Source Voltage (VGS=0V）
Gate-Source Voltage (VDS=0V) ,AC (f>1 Hz)
Continuous Drain Current at Tc=25°C
ID...
