HM20N50F - 500V N-Channel MOSFET

Product Overview

H&M semi

📥 Download Datasheet

HM20N50F 500V N-Channel MOSFET by H&M semi - Datasheet Preview — Datasheet preview – HM20N50F

Datasheet Details

Part number	HM20N50F
Manufacturer	H&M semi
File Size	863.24 KB
Description	500V N-Channel MOSFET
Datasheet	HM20N50F Datasheet
Additional preview pages of the HM20N50F datasheet.

Product details

Description

This Power MOSFET is produced using SL semi‘s advanced planar stripe DMOS technology.

Features

20.0A, 500V, RDS(on) = 0.26Ω @VGS = 10 V.
Low gate charge ( typical 70nC).
Fast switching.
100% avalanche tested.

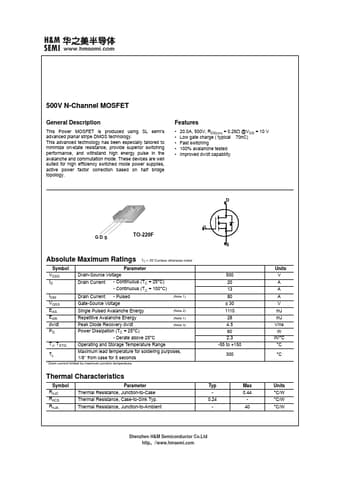

Improved dv/dt capability {D GD S TO-220F Absolute Maximum Ratings TC = 25°Cunless otherwise noted Symbol Parameter VDSS Drain-Source Voltage ID Drain Current - Continuous (TC = 25°C) - Continuous (TC = 100°C) IDM Drain Current - Pulsed (Note 1) VGSS Gate-Source Voltage EAS Single Pulsed Avalanche Energy (Note 2).
