HM78L24, HM78L05, 3-TERMINAL 0.1A POSITIVE VOLTAGE REGULATORS

POSITIVE VOLTAGE REGULATOR 3-TERMINAL 0.1A POSITIVE VOLTAGE REGULATORS This series of fixed-voltage monolithic integrated-circuit voltage regulators i.

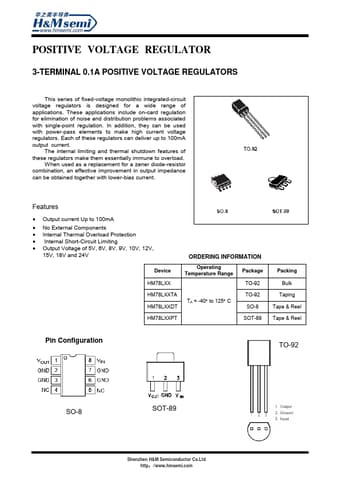

datasheet Preview Page 1 from Datasheet4u.com

HM78L05-HMsemi.pdf

HM78L24 Datasheet Preview — This datasheet PDF includes multiple part numbers: HM78L24, HM78L05. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HM78L24, HM78L05

Manufacturer:

H&M semi

File Size:

353.23 KB

Description:

3-TERMINAL 0.1A POSITIVE VOLTAGE REGULATORS

Note:

This datasheet PDF includes multiple part numbers: HM78L24, HM78L05.
Please refer to the document for exact specifications by model.

Features

* of these regulators make them essentially immune to overload. When used as a replacement for a zener diode-resistor combination, an effective improvement in output impedance can be obtained together with lower-bias current. +0/;; Features
* Output current Up to 100mA
* No External Compo

Applications

* These applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power-pass elements to make high current voltage regulators. Each of these regulators can deliver up to 100mA output current.
