AMS1117 Datasheet, Regulators, H&Msemi

AMS1117 Features

  • Regulators
  • Maximum output current is 1A
  • Range of operation input voltage: Max 20V
  • Line regulation: 0.03%/V (typ.) Applications
  • Power Management for Computer

PDF File Details

Part number:

AMS1117

Manufacturer:

H&Msemi

File Size:

898.91kb

Download:

📄 Datasheet

Description:

Low dropout three-terminal regulators. AMS1117 is a series of low dropout three-terminal regulators with a dropout o f 1.3V at 1A load current. AMS1117 features a very low

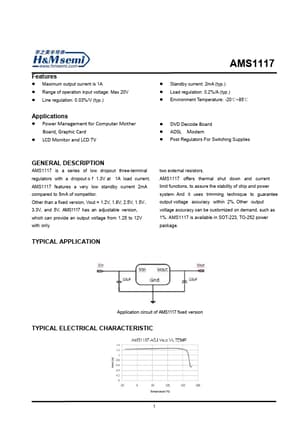

Datasheet Preview: AMS1117 📥 Download PDF (898.91kb)
Page 2 of AMS1117 Page 3 of AMS1117

AMS1117 Application

  • Applications
  • Power Management for Computer Mother Board, Graphic Card
  • LCD Monitor and LCD TV AMS1117
  • Standby current:
