TG92-2006N1LF, 10BASE-T Isolation Modules

10BASE-T Isolation Modules 16 Pin SOIC Package 10BASE-T Transformers RoHS Compliant Conflict FREE Product .

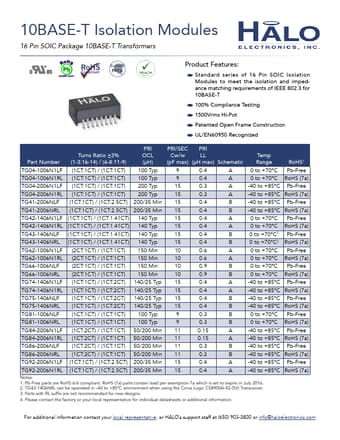

datasheet Preview Page 1 from Datasheet4u.com

TG92-2006N1LF-HALO.pdf

TG92-2006N1LF Datasheet Preview — Preview of TG92-2006N1LF PDF

Datasheet Details

Part number:

TG92-2006N1LF

Manufacturer:

HALO

File Size:

342.73 KB

Description:

10BASE-T Isolation Modules

Features

* Standard series of 16 Pin SOIC Isolation Modules to meet the isolation and impedance matching requirements of IEEE 802.3 for 10BASE-T 100% Compliance Testing 1500Vrms Hi-Pot Patented Open Frame Construction UL/EN60950 Recognized Part Number Turns Ratio ±3% (1-3:16-14) / (6-8:11-9) PRI OCL (μH)
