C11184 Datasheet - HAMAMATSU

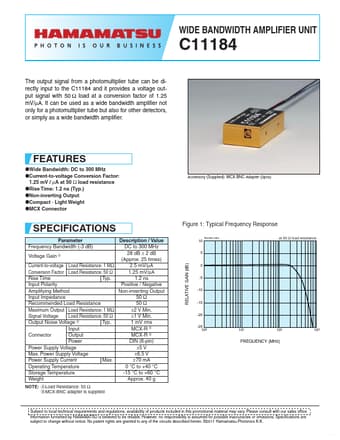

C11184 WIDE BANDWIDTH AMPLIFIER UNIT

/ Value DC to 300 MHz 28 dB ± 2 dB Voltage Gain A (Approx. 25 times) 2.5 mV/µA Current-to-voltage Load Resistance: 1 MΩ 1.25 mV/µA Conversion Factor Load Resistance: 50 Ω Typ. Rise Time 1.2 ns Input Polarity Positive / Negative Amplifying Method Non-inverting Output 50 Ω Input Impedance Recommended .

C11184-HAMAMATSU.pdf

Preview of C11184 PDF
C11184 Datasheet Preview Page 2

Datasheet Details

Part number:

C11184

Manufacturer:

HAMAMATSU

File Size:

167.05 KB

Description:

Wide bandwidth amplifier unit.
