S3590, Si PIN photodiodes

Si PIN photodiodes S3590 series Large area Si PIN photodiodes .

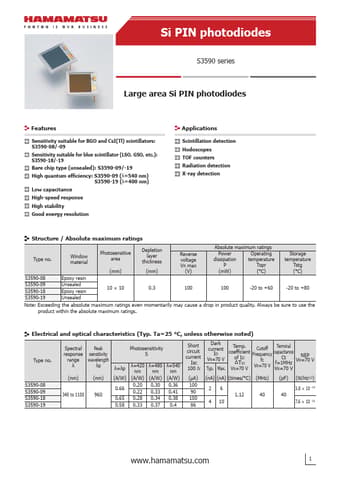

datasheet Preview Page 1 from Datasheet4u.com

S3590-HAMAMATSU.pdf

S3590 Datasheet Preview — Preview of S3590 PDF

Datasheet Details

Part number:

S3590

Manufacturer:

HAMAMATSU

File Size:

810.76 KB

Description:

Si PIN photodiodes

Features

* Sensitivity suitable for BGO and CsI(Tl) scintillators: S3590-08/-09 Sensitivity suitable for blue scintillator (LSO, GSO, etc. ): S3590-18/-19 Bare chip type (unsealed): S3590-09/-19 High quantum efficiency: S3590-09 (λ=540 nm) S3590-19 (λ=400 nm) Low capacitance High-speed response High stability G

Applications

* Scintillation detection Hodoscopes TOF counters Radiation detection X-ray detection Structure / Absolute maximum ratings Type no. Window material S3590-08 S3590-09 S3590-18 S3590-19 Epoxy resin Unsealed Epoxy resin Unsealed Photosensitive area (mm) Depletion layer thickness (mm) 10 × 10 0.3
