S9055, Si PIN photodiodes

Si PIN photodiodes S9055 series Flat response characteristics up to high frequency bands The S9055 series Si PIN photodiodes deliver a high-speed r.

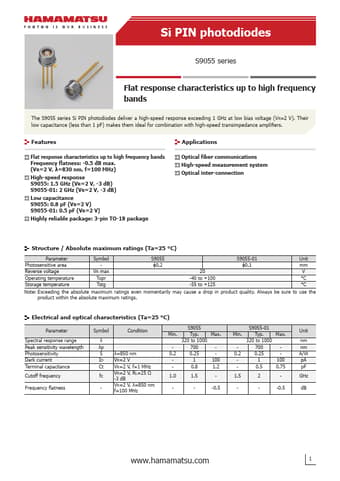

datasheet Preview Page 1 from Datasheet4u.com

S9055-HAMAMATSU.pdf

S9055 Datasheet Preview — Preview of S9055 PDF

Datasheet Details

Part number:

S9055

Manufacturer:

HAMAMATSU

File Size:

530.48 KB

Description:

Si PIN photodiodes

Features

* Flat response characteristics up to high frequency bands Frequency flatness: -0.5 dB max. (VR=2 V, λ=830 nm, f=100 MHz) High-speed response S9055: 1.5 GHz (VR=2 V, -3 dB) S9055-01: 2 GHz (VR=2 V, -3 dB) Low capacitance S9055: 0.8 pF (VR=2 V) S9055-01: 0.5 pF (VR=2 V) Highly reliable package: 3-pin T

Applications

* Optical fiber communications High-speed measurement system Optical inter-connection Structure / Absolute maximum ratings (Ta=25 °C) Parameter Symbol S9055 S9055-01 Unit Photosensitive area - ϕ0.2 ϕ0.1 mm Reverse voltage VR max 20 V Operating temperature Topr -40 to +100 °C Storag
