HDM2432c-3 - LCD DISPLAY MODULE

HANTRONIX

📥 Download Datasheet

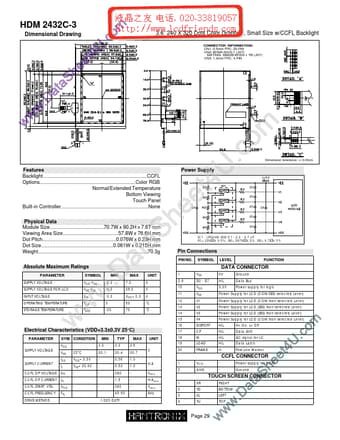

HDM2432c-3 Datasheet Preview — Preview of HDM2432c-3 PDF

Datasheet Details

Part number	HDM2432c-3
Manufacturer	HANTRONIX
File Size	117.67 KB
Description	LCD DISPLAY MODULE
Datasheet	HDM2432c-3_HANTRONIX.pdf

HDM2432c-3 Product details

Features

Features BacklightCCFL OptionsColor RGB Normal/Extended Temperature Bottom Viewing Touch Panel Built-in ControllerNone Physical PhysicalData Data Module Size70.7W x 90.2H x 7.6T mm Viewing Area Size57.8W x 76.6H mm Dot Pitch0.076W x 0.23H mm Dot Size0.061W x 0.215H mm Weight70.3g Absolute Maximum Ratings.
