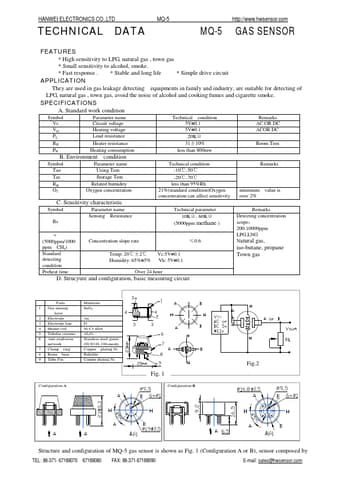

HANWEI ELECTRONICS CO.,LTD
MQ-5
TECHNICAL DATA
http://www.hwsensor.com
MQ-5 GAS SENSOR
FEATURES
* High sensitivity to LPG, natural gas , town gas
* Small sensitivity to alcohol, smoke.
* Fast response . * Stable and long life * Simple drive circuit
APPLICATION
They are used in gas leakage detecting equipments in family and industry, are suitable for detecting of
LPG, natural gas , town gas, avoid the noise of alcohol and cooking fumes and cigarette smoke.
SPECIFICATIONS
A. Standard work condition
Symbol
Parameter name
Vc Circuit voltage
VH Heating voltage
PL Load resistance
RH Heater resistance
PH Heating consumption
B. Environment condition
Technical condition 5V±0.1 5V±0.
