H2301 - P-Channel MOSFET

Datasheet Summary

Features

  • 　RDS(ON)≤120mΩ @ VGS=-4.5V 　RDS(ON)≤170mΩ @ VGS=-2.5V 　Industry-standard pinout SOT-23 Package 　Compatible with Existing Surface MountTechniques 　RoHS Compliant,Halogen-Free 　.

📥 Download Datasheet

Datasheet preview – H2301

Datasheet Details

Part number H2301
Manufacturer HAOHAI
File Size 487.97 KB
Description P-Channel MOSFET
Datasheet download datasheet H2301 Datasheet

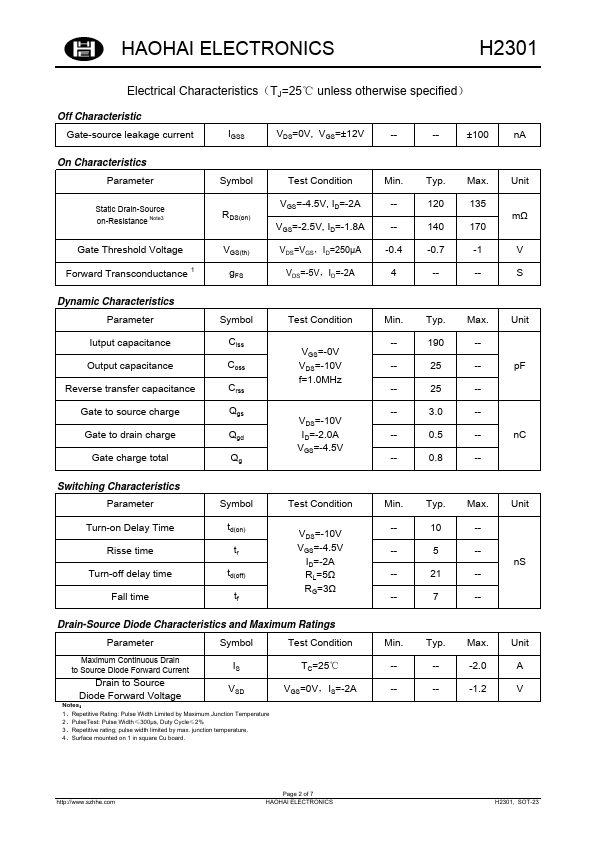

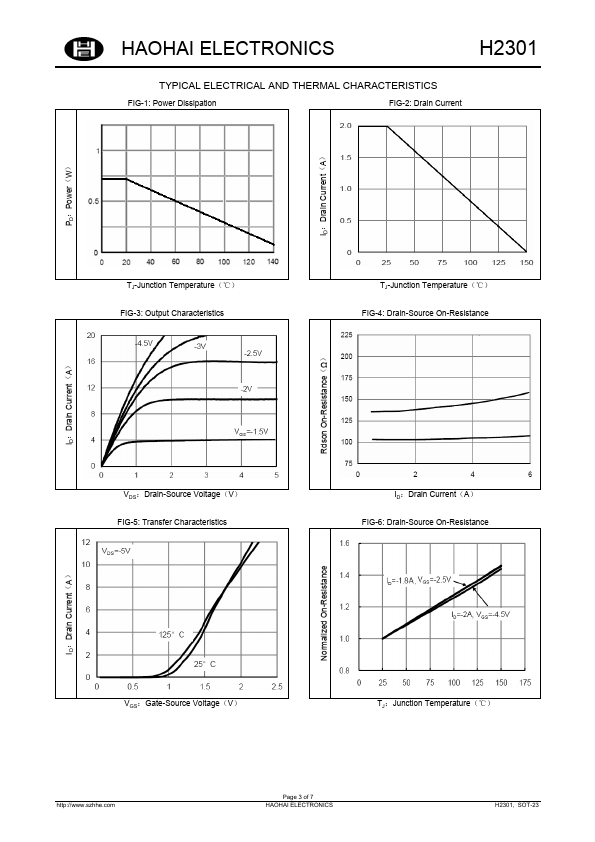

Additional preview pages of the H2301 datasheet.

📁 Similar Datasheet

  • H2305N - P-Channel Enhancement-Mode MOSFET (HI-SINCERITY)
  • H23A1 - MATCHED EMITTED DETECTOR (ETC)
  • H23A1 - (H23A1 / H23A2) PLASTIC SIDELOOKER PAIR (Fairchild Semiconductor)
  • H23A2 - MATCHED EMITTED DETECTOR (ETC)
  • H23A2 - (H23A1 / H23A2) PLASTIC SIDELOOKER PAIR (Fairchild Semiconductor)
  • H23B1 - MATCHED EMITTER DETECTOR PAIR (ETC)
Other Datasheets by HAOHAI
  • H2302 - 2A 20V N-Channel MOSFET
  • H2302A - 4A 20V N-Channel MOSFET

Full PDF Text Transcription

Click to expand full text

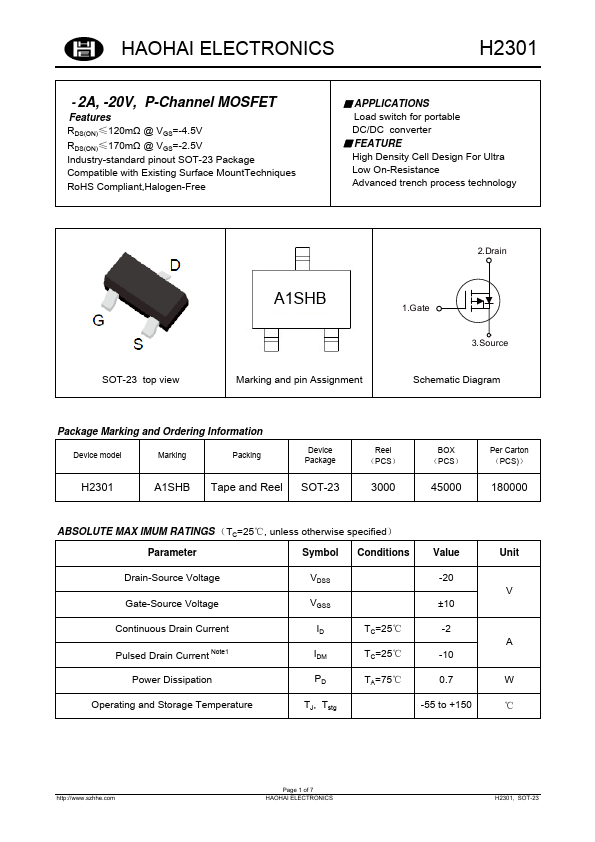

HAOHAI ELECTRONICS H2301 　 - 2A, -20V, P-Channel MOSFET 　 Features 　RDS(ON)≤120mΩ @ VGS=-4.5V 　RDS(ON)≤170mΩ @ VGS=-2.5V 　Industry-standard pinout SOT-23 Package 　Compatible with Existing Surface MountTechniques 　RoHS Compliant,Halogen-Free 　■ APPLICATIONS 　　 Load switch for portable 　　DC/DC converter 　■ FEATURE 　　High Density Cell Design For Ultra 　　Low On-Resistance 　　Advanced trench process technology SOT-23 top view A1SHB Marking and pin Assignment 2.Drain 1.Gate 3.
