SI3401 - P-Channel Enhancement-Mode MOSFETs

HAOHAI

Datasheet Details

Part number	SI3401
Manufacturer	HAOHAI
File Size	270.28 KB
Description	P-Channel Enhancement-Mode MOSFETs
Datasheet	SI3401-HAOHAI.pdf

　.

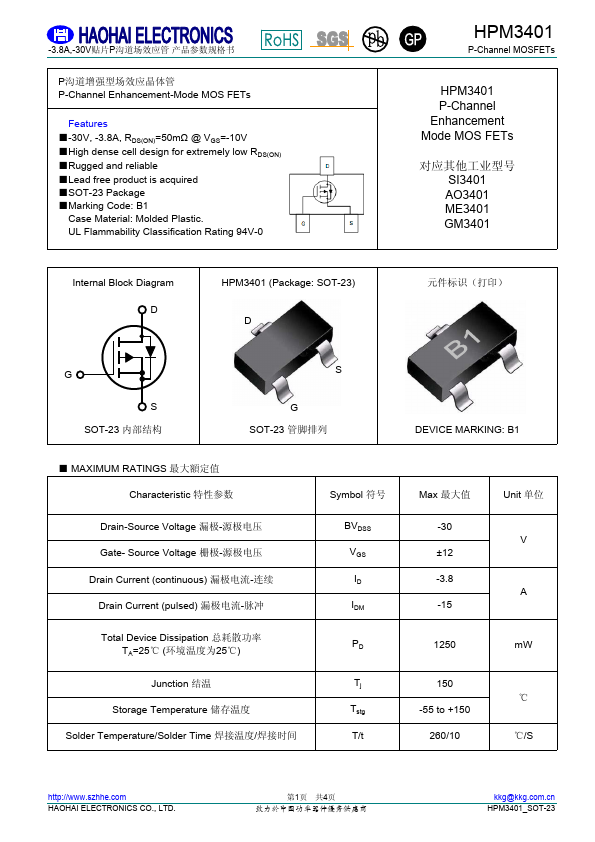

-30V, -3.8A, RDS(ON)=50mΩ @ VGS=-10V 　.
High dense cell design for extremely low RDS(ON) 　.
Rugged and reliable 　.
Lead free product is acquired 　.

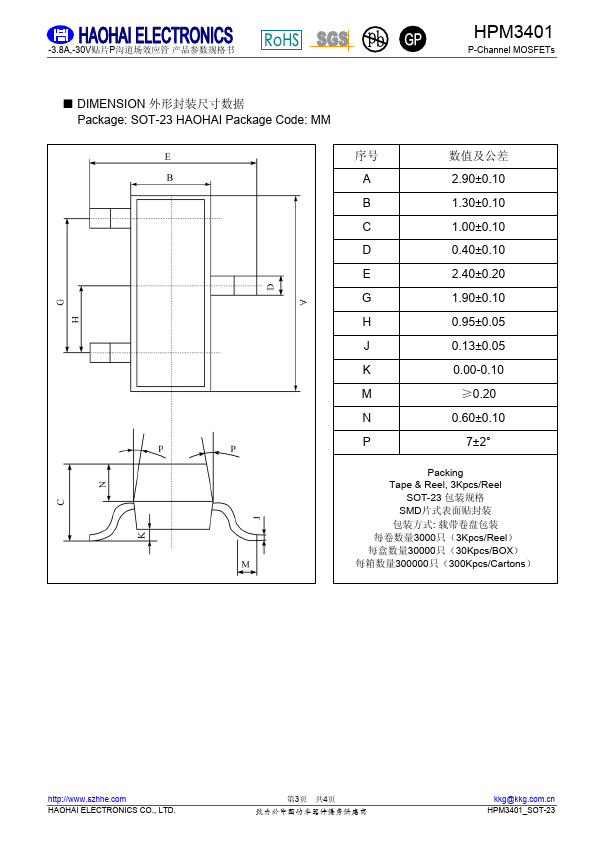

SOT-23 Package 　.
Marking Code: B1 　　Case Material: Molded Plastic. 　　UL Flammability Classification Rating 94V-0 HPM3401 P-Channel MOSFETs HPM3401 P-Channel Enhancement Mode MOS FETs SI3401 AO3401 ME3401 GM3401 Internal Block Diagram D HPM3401 (Package: SOT-23) D （） G S SOT-23 S G SOT-23 DEVICE.
