2P4M

SCRs

2P4M Features

* Blocking voltage to 600 V On-state RMS current to 2 A Ultra low gate trigger current SYMBOL VDRM IT RMS ITSM PARAMETER Repetitive peak off-state voltages RMS on-state current full sine wave Non-repetitive peak on-state current (full cycle,Tj initial=25 ) 2P4M 2P6M Value 400 600 2 20 Unit V A A

2P4M General Description

Glass passivated, sensitive gate thyristors in a plastic envelope, intended for use in general purpose switching and phase control applications. These devices are intended to be interfaced directly to microcontrollers, logic integrated circuits and other low power gate trigger circuits. Symbol Sim.

2P4M Datasheet (670.10 KB)

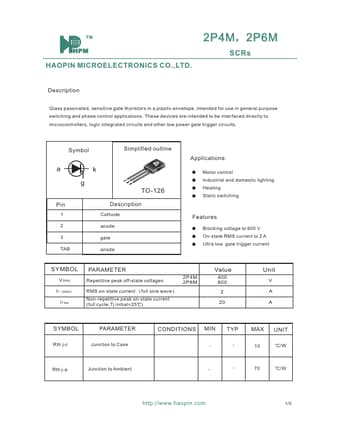

Preview of 2P4M PDF

Datasheet Details

Part number:

2P4M

Manufacturer:

HAOPIN

File Size:

670.10 KB

Description:

Scrs.
