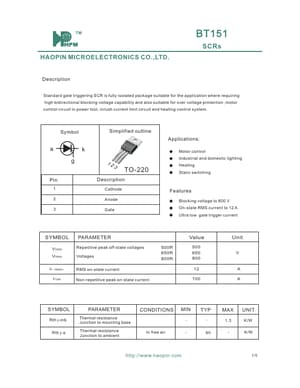

BT151-500R
Description
Standard gate triggering SCR is fully isolated package suitable for the application where requiring high bidirectional blocking voltage capability and also suitable for over voltage protection ,motor control circuit in power tool, inrush current limit circuit and heating control system.
Symbol
Simplified outline a k g
Pin
1 2 3 TO-220
Description
Cathode
Anode
Gate
Applications:
Motor control Industrial and domestic lighting Heating Static switching
Features
Blocking voltage to 800 V On-state RMS current to 12 A Ultra low gate trigger current
SYMBOL
VDRM VRRM
PARAMETER
Repetitive peak off-state voltages Voltages
IT RMS ITSM
RMS on-state current Non-repetitive peak on-state current
500R 650R 800R
Value
500 650 800
Unit
SYMBOL
Rth j-mb Rth j-a
PARAMETER
Thermal resistance Junction to mounting base
Thermal resistance Junction to ambient
CONDITIONS MIN
- In free air
- TYP
- 60
MAX...
