S6012R

SCRs

HAOPIN

S6012R Features

* Blocking voltage to 600 V On-state RMS current to 12 A SYMBOL VDRM IT RMS ITSM PARAMETER Repetitive peak off-state voltages RMS on-state current full sine wave Non-repetitive peak on-state current (full cycle,Tj initial=25 ) Value 600 12 120 Unit V A A SYMBOL PARAMETER Rth( j-c) Junction to

S6012R General Description

Standard gate triggering SCR is fully isolated package suitable for the application where requiring high bidirectional blocking voltage capability and also suitable for over voltage protection ,motor control circuit in power tool, inrush current limit circuit and heating control system. Symbol Sim.

S6012R Datasheet (305.40 KB)

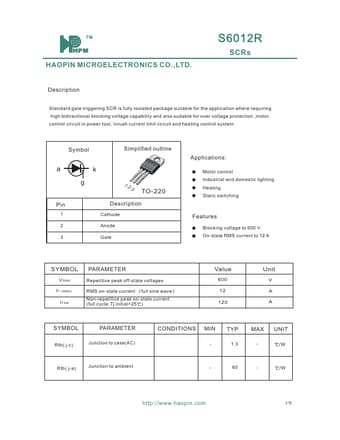

S6012R Datasheet Preview — Preview of S6012R PDF

Datasheet Details

Part number:

S6012R

Manufacturer:

HAOPIN

File Size:

305.40 KB

Description:

Scrs.
