S848

SCRs

S848 Features

* Blocking voltage to 600 V On-state RMS current to 5 A Ultra low gate trigger current Value 600 7.8 5 Unit V A A SYMBOL Rth(j-c) PARAMETER Junction to case Rth(j-l) Junction to lead for DC CONDITIONS Value TYP - - - - MAX 3.0 UNIT /W - /W http://www.haopin.com ΒΌ TM HPM HAOPIN MICROE

S848 General Description

Glass passivated, sensitive gate thyristors in a plastic envelope, intended for use in general purpose switching and phase control applications. These devices are intended to be interfaced directly to microcontrollers, logic integrated circuits and other low power gate trigger circuits. Symbol Sim.

S848 Datasheet (467.12 KB)

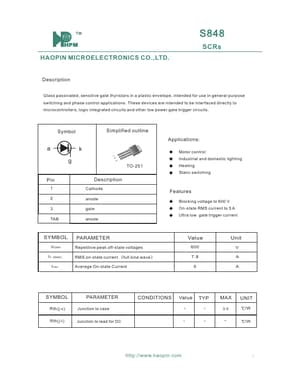

Preview of S848 PDF

Datasheet Details

Part number:

S848

Manufacturer:

HAOPIN

File Size:

467.12 KB

Description:

Scrs.
