HY-STM32F2xxCore144

User Manual

HY-STM32F2xxCore144 Features

* CPU: STM32F207ZGT6 frequency up to 120 MHz、1MB flash、128KB RAM Ethernet, USB OTG, USB2.0 high speed,CAMERA, FSMC, SPI, 3xI2C, 6xUSART, 2xCAN, 112xfast GPIOs, PWM, 3xADC 12bit, 2xDAC 12bit, DMA

* 25 Mhz main crystal oscillator, 32768 Hz RTC crystal

* USB connector

* RESET button

HY-STM32F2xxCore144 General Description

Pin Function Description Two male headers JP1 and JP2 can be used to connect with main board or standard wrapping board to HY-STM32F2xxCore144 board. All total 112 GPIOs are available on it. www.PowerMCU.com HY-STM32F2xxCore144_UserManual Extension Connector JP1 Pin Pin name Use function JTCK.

HY-STM32F2xxCore144 Datasheet (897.07 KB)

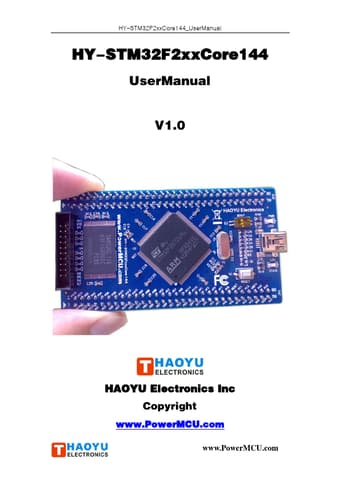

Preview of HY-STM32F2xxCore144 PDF

Datasheet Details

Part number:

HY-STM32F2xxCore144

Manufacturer:

HAOYU

File Size:

897.07 KB

Description:

User manual.
HY-STM32F2xxCore144_UserManual HY-STM32F2xxCore144 UserManual V1.0 HAOYU Electronics Inc Copyright www.PowerMCU.com www.PowerMCU.com http://www.Data.
