M22520-2-01 - DATAMATE HAND CRIMP TOOL

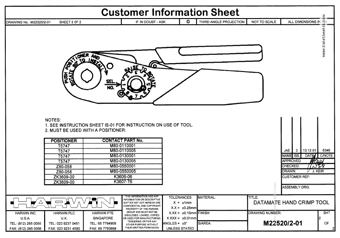

www.DataSheet4U.com HAND CRIMP TOOL M22520/2-01 This Hand Crimp Tool has been designed for use with the following Datamate crimp sockets (when used with Positioner T5747): M80-0110001 Large bore crimp socket (22 AWG), Tin shell/Gold clip (used in M80-889XX01 and M80-899XX01) M80-0110005 Large bore crimp socket (22 AWG), Gold shell/Gold clip (used in M80-889XX05 and M80-899XX05) M80-0130001 Small bore crimp socket (24-28 AWG), Tin shell/Gold clip (used in M80-888XX01 and M80-898XX01) M80-013000

M22520-2-01_HARWIN.pdf

Preview of M22520-2-01 PDF
M22520-2-01 Datasheet Preview Page 2 M22520-2-01 Datasheet Preview Page 3

Datasheet Details

Part number:

M22520-2-01

Manufacturer:

HARWIN

File Size:

104.07 KB

Description:

Datamate hand crimp tool.
