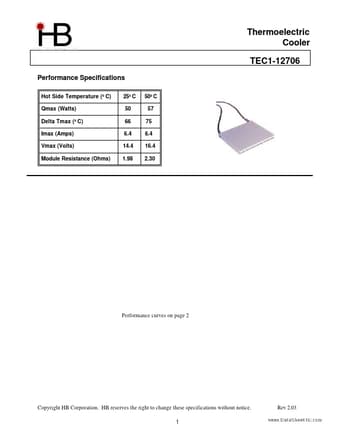

TEC1-12706
..
Thermoelectric Cooler TEC1-12706
Performance Specifications
Hot Side Temperature (ºC) Qmax (Watts) Delta Tmax (ºC) Imax (Amps) Vmax (Volts) Module Resistance (Ohms) 25ºC 50 66 6.4 14.4 1.98 50ºC 57 75 6.4 16.4 2.30
Performance curves on page 2
Copyright HB Corporation. HB reserves the right to change these specifications without notice. 1
Rev 2.03
..
Copyright HB Corporation. HB reserves the right to change these specifications without notice. 2
Rev 2.03
..
Ceramic Material: Alumina (Al2O3) Solder Construction: 138ºC, Bismuth Tin (Bi Sn)
Size table:
A 40
B 40
C 3.8
Operating Tips
- - Max. Operating Temperature: 138o C Do not exceed Imax or Vmax when operating module.
- Life expectancy: 200,000 hours
- - Please consult HB for moisture protection options (seeling).
- Failure rate based on long time testings: 0.2%.
Copyright HB Corporation. HB reserves the right to change these specifications without notice. 3
Rev...
