Hebei I.T. (Shanghai) Co., Lt d.
Specification
Item Number:
TEC1-12712

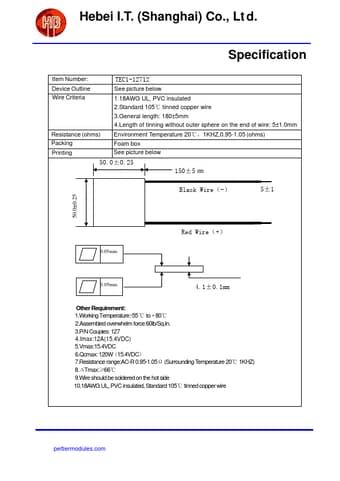

Device Outline
See picture below
Wire Criteria
1.18AWG UL, PVC insulated 2.Standard 105℃ tinned copper wire
3.General length: 180±5mm
4.Length of tinning without outer sphere on the end of wire: 5±1.0mm
Resistance (ohms) Environment Temperature 20℃，1KHZ,0.95-1.05 (ohms)
Packing
Foam box
Printing
See picture below
50.0±0.25
150±5 ㎜
Black Wire（-）
5±1
50.0±0.25
0.05mm
Red Wire（+）
0.05mm
4.1±0.1mm
0.05
Other Requirement: 1.Working Temperature:-55℃ to﹢80℃
2.Assembled overwhelm force:60lb/Sq.In. 3.P/N Couples: 127 4.Imax:12A(15.4VDC) 5.Vmax:15.4VDC 6.Qcmax: 120W（15.4VDC） 7.Resistance range:AC-R 0.95-1.05Ω (Surrounding Temperature 20℃ 1KHZ) 8.ΔTmax:≥66℃
9.Wire should be soldered on the hot side 10.
