HD206, HD206-HD Datasheet - HD-CRYSTAL

HD206 Quartz Crystal

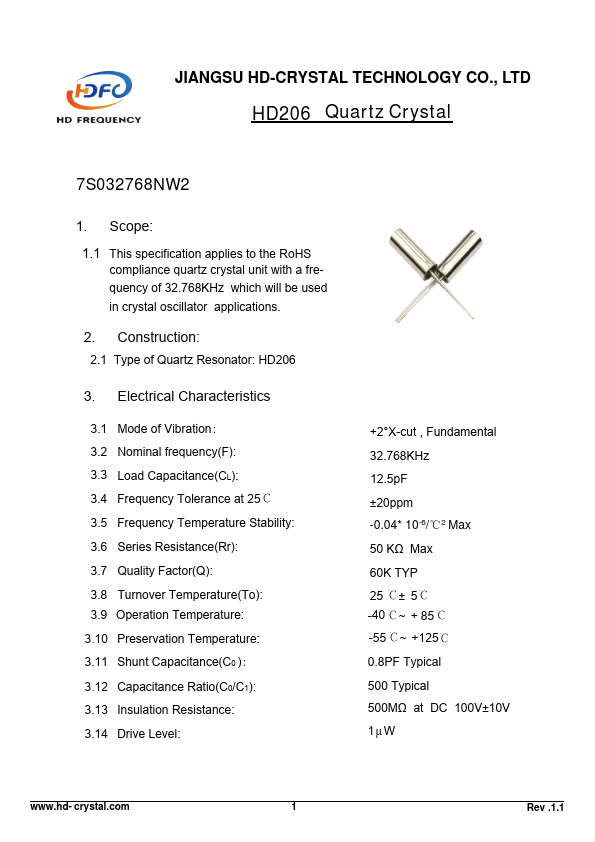

JIANGSU HD-CRYSTAL TECHNOLOGY CO., LTD HD206 Quartz Crystal 7S032768NW2 1. Scope: 1.1 This specification applies to the RoHS compliance quartz crystal unit with a frequency of 32.768KHz which will be used in crystal oscillator applications. 2. Construction: 2.1 Type of Quartz Resonator: HD206 3. Electrical Characteristics 3.1 Mode of Vibration： 3.2 Nominal frequency(F): 3.3 Load Capacitance(CL): 3.4 Frequency Tolerance at 25℃ 3.5 Frequency Temperature Stability: 3.6 Series Resistance(Rr): 3.7 Q.

HD206-HD-CRYSTAL.pdf

This datasheet PDF includes multiple part numbers: HD206, HD206-HD. Please refer to the document for exact specifications by model.

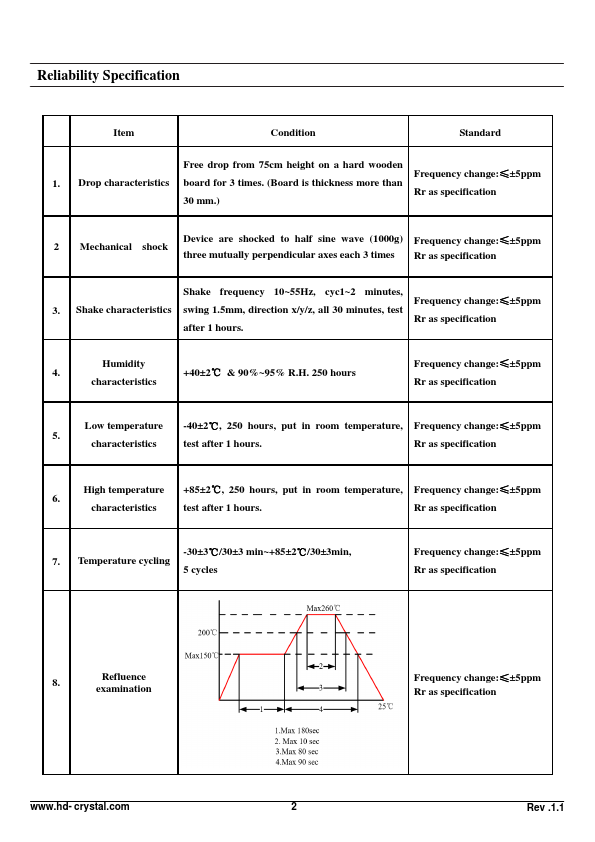

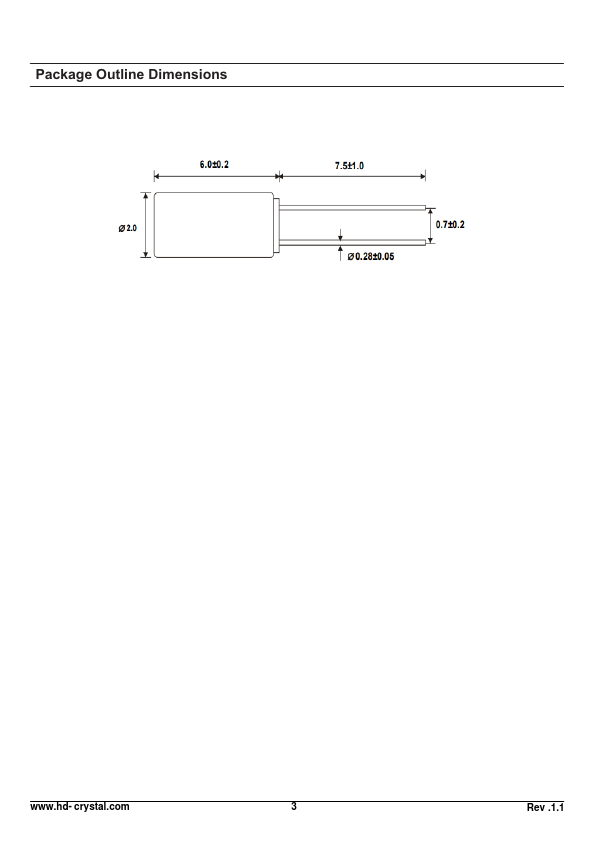

HD206 Datasheet Preview Page 2 HD206 Datasheet Preview Page 3

Datasheet Details

Part number:

HD206, HD206-HD

Manufacturer:

HD-CRYSTAL

File Size:

3.50 MB

Description:

Quartz crystal.

Note:

This datasheet PDF includes multiple part numbers: HD206, HD206-HD.
Please refer to the document for exact specifications by model.
