HT8691 - 5.5W Anti-Clipping Mono Class D Audio Amplifier

Datasheet Summary

Description

HT8691 integrates a boost converter with a filter-less stereo class D audio power amplifier to provide 5.5W continuous power into a into a 4Ω speak

📥 Download Datasheet

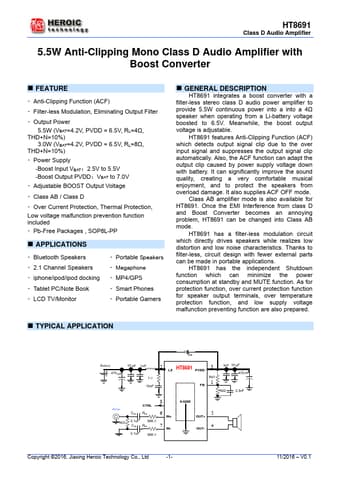

Datasheet preview – HT8691

Datasheet Details

Part number HT8691
Manufacturer HEROIC
File Size 972.27 KB
Description 5.5W Anti-Clipping Mono Class D Audio Amplifier
Datasheet download datasheet HT8691 Datasheet
