DHM020BB, HIGH SENSITIVITY ZERO-BIAS SCHOTTKY DIODE DETECTORS

HIGH SENSITIVITY ZERO-BIAS SCHOTTKY DIODE DETECTORS 100 KHz - 26.5 GHz .

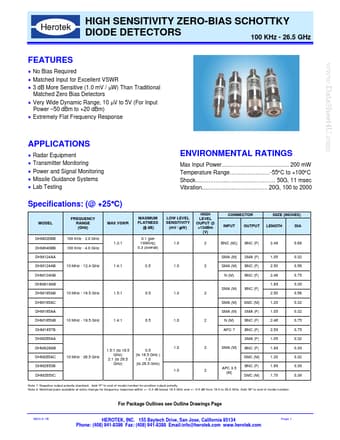

datasheet Preview Page 1 from Datasheet4u.com

DHM020BB_HEROTEK.pdf

DHM020BB Datasheet Preview — Preview of DHM020BB PDF

Datasheet Details

Part number:

DHM020BB

Manufacturer:

HEROTEK

File Size:

104.32 KB

Description:

HIGH SENSITIVITY ZERO-BIAS SCHOTTKY DIODE DETECTORS

Features

* No Bias Required
* Matched Input for Excellent VSWR
* 3 dB More Sensitive (1.0 mV / μW) Than Traditional Matched Zero Bias Detectors
* Very Wide Dynamic Range, 10 μV to 5V (For Input Power
* 50 dBm to +20 dBm)
* Extremely Flat Frequency Response www.

Applications

* Radar Equipment Transmitter Monitoring Power and Signal Monitoring Missile Guidance Systems Lab Testing ENVIRONMENTAL RATINGS Max Input Power. …………………………. . …. 200 mW Temperature Range……. ……………-55°C to +100°C Shock……………………. …. ………… 50G, 11 msec Vibration.
