57BYGH115-003 Datasheet - HETAI ELECTRIC

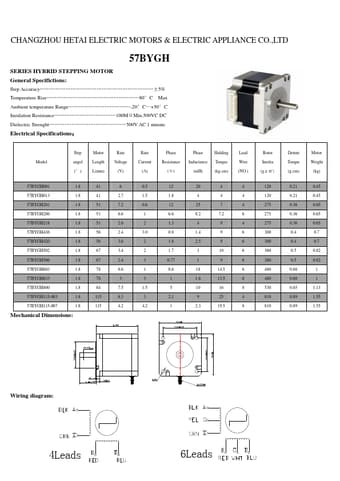

57BYGH115-003 HYBRID STEPPING MOTOR

CHANGZHOU HETAI ELECTRIC MOTORS & ELECTRIC APPLIANCE CO.,LTD 57BYGH SERIES HYBRID STEPPING MOTOR General Specifictions: Step Accuracy…………………………………………………………±5% Temperature Rise………………………………………………80°C Max Ambient temperature Range………………………………-20°C +50°C Insulation Resistance………………………………100MΩMin.500VC DC Dielectric Strenght………………………………………500V AC 1 minute Electrical Specifications： Model Step angel (°) Motor Length L(mm) Rate Voltage (V) Rate Current (A) Phase Resistance (Ω) Phase Indu.

57BYGH115-003 Datasheet (123.01 KB)
