SFX20N60

600V N-CHANNEL POWER MOSFET

SFX20N60 Features

* VDS(V)=600V, ID=20A

* RDS(ON) TYP:0.32Ω@VGS=10V ID=10A MAX:0.4Ω Applications

* Power faction correction (PFC)

* Switched mode power supplies (SMPS)

* Uninterruptible power supply (UPS)

* LED lighting power SFX20N60 ORDERING INFORMATION Part No. SFF20N60 SFP20N60 Package TO-22

SFX20N60 General Description

These N-Channel enhancement mode power field effect transistors are produced using Hi-semicon’s proprietary, planar stripe, DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse .

SFX20N60 Datasheet (750.57 KB)

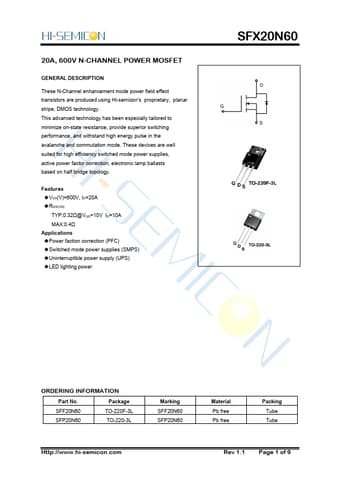

Preview of SFX20N60 PDF

Datasheet Details

Part number:

SFX20N60

Manufacturer:

HI-SEMICON

File Size:

750.57 KB

Description:

600v n-channel power mosfet.
