1N914BM - 500mW DO-34 Hermetically Sealed Glass Fast Switching Diodes

Datasheet Summary

Features

Fast Switching Device (TRR.

1N914BM 500mW DO-34 Hermetically Sealed Glass Fast Switching Diodes by HIGHWAY - Datasheet Preview — Datasheet preview – 1N914BM

Datasheet Details

Part number	1N914BM
Manufacturer	HIGHWAY
File Size	203.57 KB
Description	500mW DO-34 Hermetically Sealed Glass Fast Switching Diodes
Datasheet	1N914BM Datasheet
Additional preview pages of the 1N914BM datasheet.

📁 Similar Datasheet

1N914B - Silicon Rectifier Diode (NTE)
1N914B - SWITCHING RECTIFIERS (Digitron Semiconductors)
1N914B - HIGH SPEED SWITCHING DIODES (EIC)
1N914B - 500mW 100 Volt Silicon Epitaxial Diodes (MCC)
1N914B - SIGNAL DIODE (WILLAS)
1N914B - Small Signal Diode (ON Semiconductor)
1N914B - SMALL SIGNAL SWITCHING DIODE (GME)
1N914B - FAST SWITCHING DIODE (Diodes)
1N914B - HIGH SPEED SILICON SWITCHING DIODE (TRANSYS)
1N914B - Switching Diode (TAITRON)

Other Datasheets by HIGHWAY

Full PDF Text Transcription

Click to expand full text

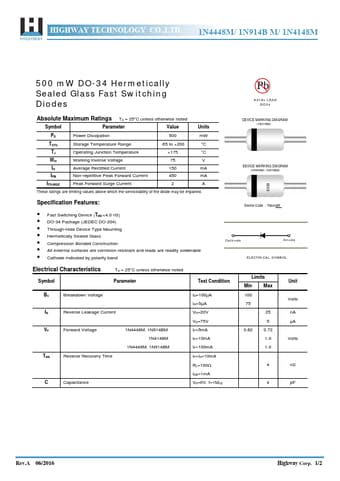

HIGHWAY TECHNOLOGY CO.,LTD. 1N4448M/ 1N914B M/ 1N4148M 500 mW DO-34 Hermetically Sealed Glass Fast Switching Diodes AXIAL LEAD DO34 Absolute Maximum Ratings TA = 25°C unless otherwise noted Symbol Parameter Value Units PD Power Dissipation 500 mW TSTG Storage Temperature Range -65 to +200 °C TJ Operating Junction Temperature +175 °C WIV Working Inverse Voltage 75 V IO Average Rectified Current 150 mA IFM Non-repetitive Peak Forward Current 450 mA IFSURGE Peak Forward Surge Current 2A These ratings are limiting values above which the serviceability of the diode may be impaired. xxxx DEVICE MARKING DIAGRAM (1N4148M) DEVICE MARKING DIAGRAM (1N4448M / 1N914BM) Specification Features: Fast Switching Device (TRR <4.
