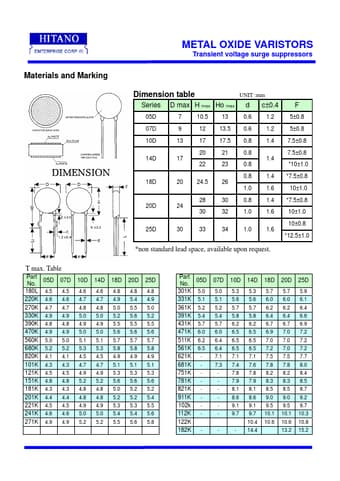

METAL OXIDE VARISTORS Transient voltage surge suppressors Materials and Marking Dimension table UNIT :mm Series D max H max Ho max d c±0.4 05D 7 10.5 13 0.6 1.2 F 5±0.8 07D 9 12 13.5 0.6 1.2 5±0.8 10D 13 17 17.5 0.8 1.4 7.5±0.8 20 21 0.8 7.5±0.8 14D 17 1.4 22 23 0.8 10±1.0 0.8 1.4 7.5±0.8 18D 20 24.5 26 1.0 1.6 10±1.0 28 30 0.8 1.4 7.5±0.8 20D 24 30 32 1.0 1.6 10±1.0 10±0.8 25D 30 33 34 1.0 1.6 12.5±1.0 non standard lead space, available upon request
Datasheet Details
Part number:
07D621K, 07D180L
Manufacturer:
HITANO
File Size:
100.14 KB
Description:
Metal oxide varistors.
Note:
This datasheet PDF includes multiple part numbers: 07D621K, 07D180L.
Please refer to the document for exact specifications by model.
