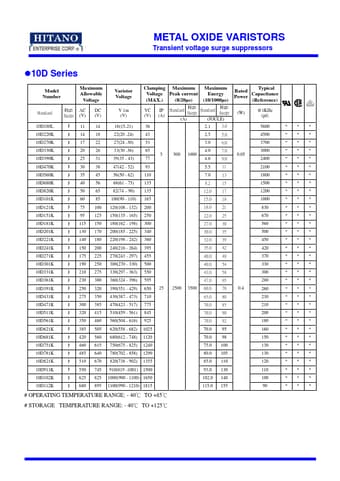

METAL OXIDE VARISTORS Transient voltage surge suppressors 10D Series Model Number Maximum Allowable Voltage Standard High AC Surge (V) DC (V) Varistor Voltage V 1m (V) Clamping Voltage (MAX.) VC IP (V) (A) Maximum Maximum Peak current Energy (8/20µs) (10/1000µs) Standard High Surge Standard High Surge (A) (JOULE) Rated Power Typical Capacitance (Reference) (W) @1KHz (pf) 10D180L J 11 14 18(15-21) 36 2.1 3.0 5600 10D220K J 14 18 22(20 -24) 43 2.5
Datasheet Details
Part number:
10D390K, 10D180L
Manufacturer:
HITANO
File Size:
102.13 KB
Description:
Metal oxide varistors.
Note:
This datasheet PDF includes multiple part numbers: 10D390K, 10D180L.
Please refer to the document for exact specifications by model.
