PSR-23F08S-Q Datasheet - HITPOINT

PSR-23F08S-Q Mylar speaker

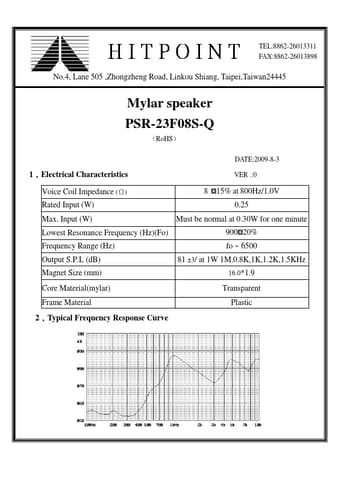

TEL:8862-26013311 FAX:8862-26013898 No.4, Lane 505 ,Zhongzheng Road, Linkou Shiang, Taipei,Taiwan24445 Mylar speaker PSR-23F08S-Q （RoHS） DATE:2009-8-3 1﹒Electrical Characteristics VER .:0 Voice Coil Impedance (Ω) 8 ±15% at 800Hz/1.0V Rated Input (W) 0.25 Max. Input (W) Must be normal at 0.30W for one minute Lowest Resonance Frequency (Hz)(Fo) 900±20% Frequency Range (Hz) fo ~ 6500 Output S.P.L (dB) 81 ±3/ at 1W 1M.0.8K,1K,1.2K,1.5KHz Magnet Size (mm) 16.0 1.9 Core Material.

PSR-23F08S-Q Datasheet (218.00 KB)
