HRS1K-SDC6V, HRS1K Datasheet - HKE

HRS1K-HKE.pdf

This datasheet PDF includes multiple part numbers: HRS1K-SDC6V, HRS1K. Please refer to the document for exact specifications by model.
HRS1K-SDC6V Datasheet Preview Page 2 HRS1K-SDC6V Datasheet Preview Page 3

Datasheet Details

Part number:

HRS1K-SDC6V, HRS1K

Manufacturer:

HKE

File Size:

58.49 KB

Description:

Relay.

Note:

This datasheet PDF includes multiple part numbers: HRS1K-SDC6V, HRS1K.
Please refer to the document for exact specifications by model.

HRS1K-SDC6V, HRS1K, Relay

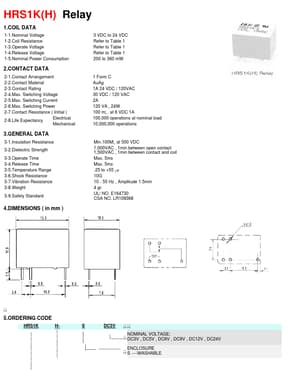

HRS1K(H) Relay 1.COIL DATA 1-1.Nominal Voltage 1-2.Coil Resistance 1-3.Operate Voltage 1-4.Release Voltage 1-5.Nominal Power Consumption 3 VDC to 24 VDC Refer to Table 1 Refer to Table 1 Refer to Table 1 200 to 360 mW 2.CONTACT DATA 2-1.Contact Arrangement 2-2.Contact Material 2-3.Contact Rating 2-4.Max.

Switching Voltage 2-5.Max.

Switching Current 2-6.Max.

Switching Power 2-7.Contact Resistance ( Initial ) Electrical 2-8.Life Expectancy Mechanical 1 Form C AuAg 1A 24 VDC / 120VAC 30 VDC / 120
