HLS-T78-H-DC24V-A, HLS-T78-H-DC12V-A Datasheet - HLS

HLS-T78-H-DC24V-A Relay

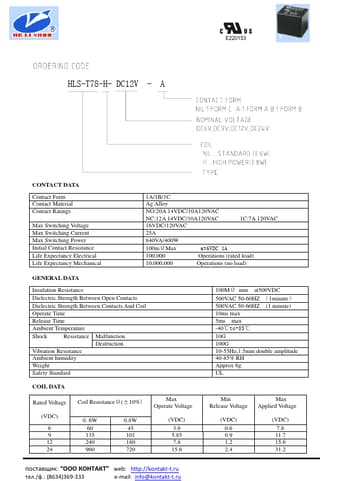

HLS-T78-H- DC12V - A C US E220153 CONTACT DATA Contact Form Contact Material Contact Ratings Max Switching Voltage Max Switching Current Max Switching Power Initial Contact Resistance Life Expectancy Electrical Life Expectancy Mechanical 1A/1B/1C Ag Alloy NO:20A 14VDC/10A120VAC NC:12A 14VDC/10A120VAC 1C:7A 120VAC 16VDC/120VAC 25A 840VA/400W 100mΩMax at6VDC 1A 100,000 Operations (rated load) 10,000,000 Operations (no load) GENERAL DATA Insulation Resistance Dielectric Strength .

HLS-T78-H-DC12V-A-HLS.pdf

HLS-T78-H-DC24V-A Datasheet Preview — This datasheet PDF includes multiple part numbers: HLS-T78-H-DC24V-A, HLS-T78-H-DC12V-A. Please refer to the document for exact specifications by model.

HLS-T78-H-DC24V-A Datasheet Preview Page 2

Datasheet Details

Part number:

HLS-T78-H-DC24V-A, HLS-T78-H-DC12V-A

Manufacturer:

HLS

File Size:

199.90 KB

Description:

Relay.

Note:

This datasheet PDF includes multiple part numbers: HLS-T78-H-DC24V-A, HLS-T78-H-DC12V-A.
Please refer to the document for exact specifications by model.
