HY1707 - N-Channel MOSFET

Download the HY1707 datasheet PDF. This datasheet also covers the HY1707P variant, as both devices belong to the same n-channel mosfet family and are provided as variant models within a single manufacturer datasheet.

General Description

G D S D Applications G

Power Management for Inverter Systems.

Key Features

  • 70V/80A, RDS(ON)= 6mΩ (typ. ) @ VGS=10V.
  • Avalanche Rated.
  • Reliable and Rugged.
  • Lead Free and Green Devices Available (RoHS Compliant) N-Channel Enhancement Mode MOSFET Pin.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (HY1707P-HOOYI.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number HY1707
Manufacturer HOOYI
File Size 736.38 KB
Description N-Channel MOSFET
Datasheet download datasheet HY1707 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
HY17-12 90 Degree Hybrid 1.71-1.88 GHz Alpha Industries
HY17-12 90-Degree Hybrid 1.71-1.88 GHz Skyworks Solutions
HY17-12LF 90-Degree Hybrid 1.71-1.88 GHz Skyworks Solutions
HY1710B Power MOSFET VBsemi
HY1720B N-Channel Enhancement Mode MOSFET HUAYI

Other Datasheets by HOOYI

Part Number Description
HY1707B N-Channel MOSFET
HY1707I N-Channel MOSFET
HY1707M N-Channel MOSFET
HY1707MF N-Channel MOSFET
HY1707P N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

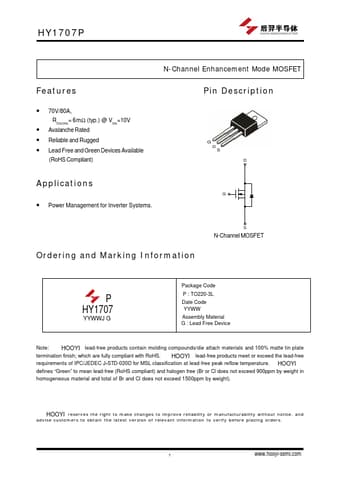

HY1707P Features • 70V/80A, RDS(ON)= 6mΩ (typ.) @ VGS=10V • Avalanche Rated • Reliable and Rugged • Lead Free and Green Devices Available (RoHS Compliant) N-Channel Enhancement Mode MOSFET Pin Description G D S D Applications G • Power Management for Inverter Systems. Ordering and Marking Information S N-Channel MOSFET P HY1707 Yÿ YWWJ G Package Code P : TO220-3L Date Code YYWW Assembly Material G : Lead Free Device Note: HOOYI lead-free products contain molding compounds/die attach materials and 100% matte tin plate termination finish; which are fully compliant with RoHS. HOOYI lead-free products meet or exceed the lead-free requirements of IPC/JEDEC J-STD-020D for MSL classification at lead-free peak reflow temperature.
