HYG012N08NS1TA - N-Channel Enhancement Mode MOSFET

Description

Tab Pin 8 Pin 1 TOLL Applications Switching application Power management for inverter systems Battery management Tab Pin 1 Ordering and Marking Information Pin 2,3,4,5,6,7,8 N-Channel MOSFET TA G012N08 XYMXXXXXX Package Code TA:TOLL Date Code XYMXXXXXX Note: HUAYI lead-free

📥 Download Datasheet

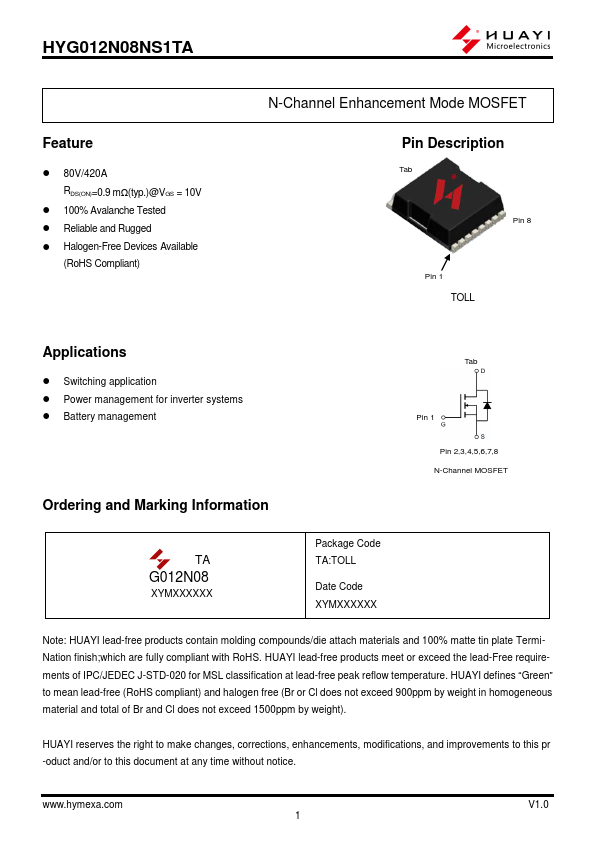

Datasheet preview – HYG012N08NS1TA

Datasheet Details

Part number HYG012N08NS1TA
Manufacturer HOOYI
File Size 599.68 KB
Description N-Channel Enhancement Mode MOSFET
Datasheet download datasheet HYG012N08NS1TA Datasheet

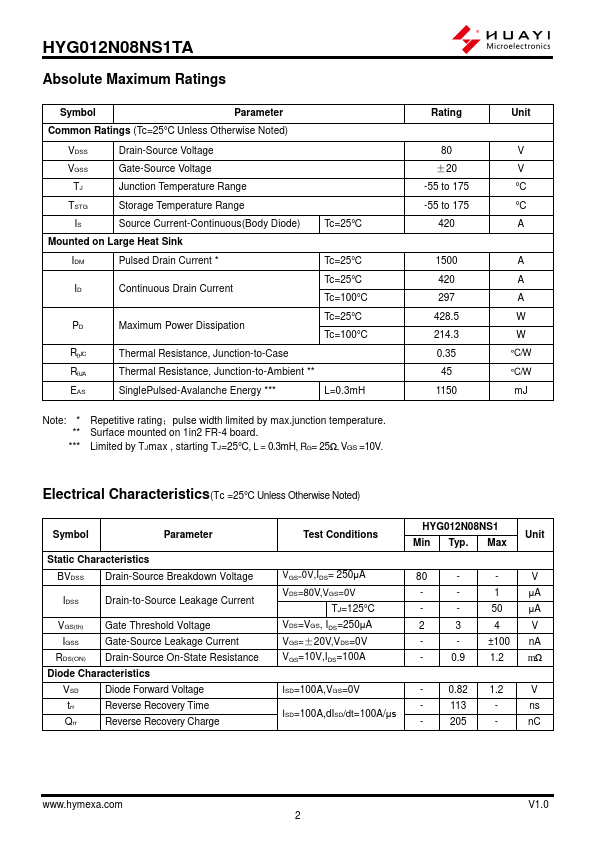

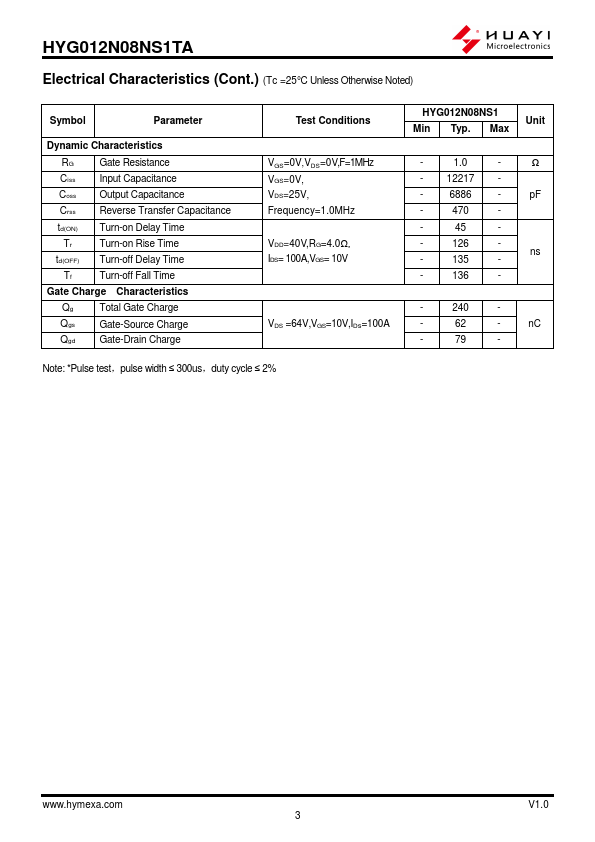

Additional preview pages of the HYG012N08NS1TA datasheet.

📁 Similar Datasheet

Other Datasheets by HOOYI

Full PDF Text Transcription

Click to expand full text
HYG012N08NS1TA Feature  80V/420A RDS(ON)=0.9 mΩ(typ.)@VGS = 10V  100% Avalanche Tested  Reliable and Rugged  Halogen-Free Devices Available (RoHS Compliant) N-Channel Enhancement Mode MOSFET Pin Description Tab Pin 8 Pin 1 TOLL Applications  Switching application  Power management for inverter systems  Battery management Tab Pin 1 Ordering and Marking Information Pin 2,3,4,5,6,7,8 N-Channel MOSFET TA G012N08 XYMXXXXXX Package Code TA:TOLL Date Code XYMXXXXXX Note: HUAYI lead-free products contain molding compounds/die attach materials and 100% matte tin plate TermiNation finish;which are fully compliant with RoHS. HUAYI lead-free products meet or exceed the lead-Free requirements of IPC/JEDEC J-STD-020 for MSL classification at lead-free peak reflow temperature.
