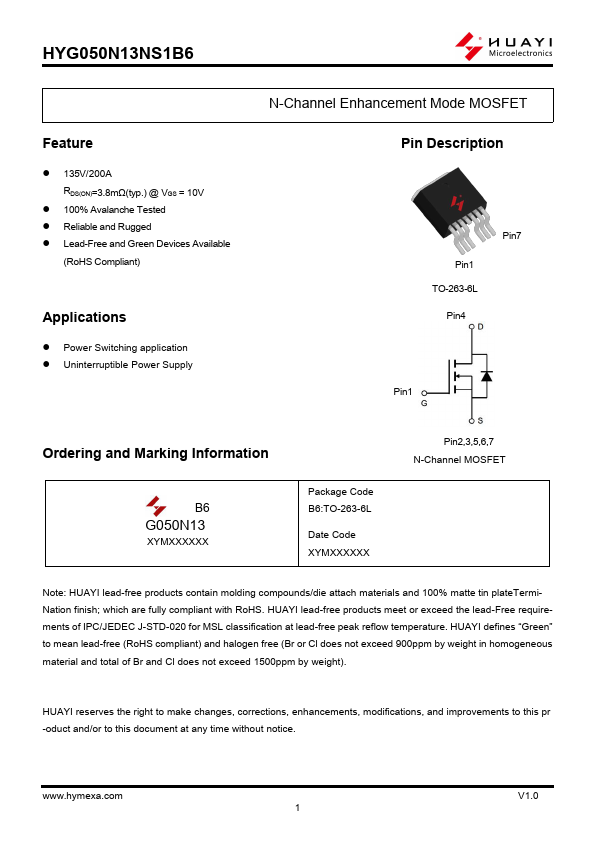

HYG050N13NS1B6
Feature
- 135V/200A RDS(ON)=3.8mΩ(typ.) @ VGS = 10V
- 100% Avalanche Tested
- Reliable and Rugged
- Lead-Free and Green Devices Available
(Ro HS pliant)
Applications
- Power Switching application
- Uninterruptible Power Supply
N-Channel Enhancement Mode MOSFET Pin Description
Pin7 Pin1 TO-263-6L Pin4
Pin1
Ordering and Marking Information
B6
G050N13
XYMXXXXXX
Package Code B6:TO-263-6L
Date Code XYMXXXXXX
Pin2,3,5,6,7 N-Channel MOSFET
Note: HUAYI lead-free products contain molding pounds/die attach materials and 100% matte tin plate Termi Nation finish; which are fully pliant with Ro HS. HUAYI lead-free products meet or exceed the lead-Free requirements of IPC/JEDEC J-STD-020 for MSL classification at lead-free peak reflow temperature. HUAYI defines “Green” to mean lead-free (Ro HS pliant) and halogen free (Br or Cl does not exceed 900ppm by weight in homogeneous material and total of Br and Cl does not exceed 1500ppm by weight).
HUAYI reserves the right to make changes, corrections,...
