4N46, 4N45 Datasheet - HP

4N46 High Gain Darlington Output Optocouplers

The 4N45/46 optocouplers contain a GaAsP light emitting diode optically coupled to a high gain photodetector IC. The excellent performance over temperature results from the inclusion of an integrated emitterbase bypass resistor which shunts photodiode and first stage leakage currents as well as blee.

4N46 Features

* High Current Transfer Ratio

* 1500% Typical

* Low Input Current Requirement

* 0.5 mA

* Performance Guaranteed over 0°C to 70°C Temperature Range

* Internal Base-Emitter Resistor Minimizes Output Leakage

* Gain-Bandwidth Adjustment Pin

* S

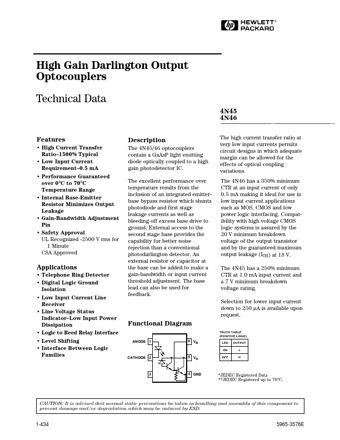

4N45-HP.pdf

4N46 Datasheet Preview — This datasheet PDF includes multiple part numbers: 4N46, 4N45. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

4N46, 4N45

Manufacturer:

File Size:

215.56 KB

Description:

High gain darlington output optocouplers.

Note:

This datasheet PDF includes multiple part numbers: 4N46, 4N45.
Please refer to the document for exact specifications by model.
