5082-7756, 5082-7733 - 7-Segment Displays

The 5082-7756 by HP is a 7-Segment Displays. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the 5082-7756 7-Segment Displays datasheet (HP).

Datasheet Details

Part number 5082-7756, 5082-7733
Manufacturer HP
File Size 317.77 KB
Description 7-Segment Displays
Datasheet download datasheet 5082-7733-HP.pdf
Note This datasheet PDF includes multiple part numbers: 5082-7756, 5082-7733.
Please refer to the document for exact specifications by model.

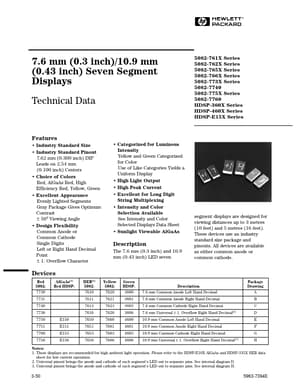

Additional preview pages of the 5082-7756 datasheet.

5082-7756 Product details

Description

The 7.6 mm (0.3 inch) and 10.9 mm (0.43 inch) LED seven segment displays are designed for viewing distances up to 3 metres (10 feet) and 5 metres (16 feet).These devices use an industry standard size package and pinouts.All devices are available as either common anode or common cathode.Devices Red 50827730 7731 7740 7736 7750 7751 7760 7756 E150 E151 E153 E156 AlGaAs[1] Red HDSPHER[1] 50827610 7611 7613 7616 7650 7651 7653 7656 Yellow 50827620 7621 7623 7626 7660 7661 7663 7666 Green HDSP36
