* Dual Marked with Device Part Number and DESC Drawing Number
* Manufactured and Tested on a MIL-PRF-38534 Certified Line
* QML-38534, Class H and K
* Three Hermetically Sealed Package Configurations
* Performance Guaranteed over -55°C to +125°C
* High
5962-89570 Datasheet (233.81 KB)
5962-89570
HP
233.81 KB
Logic gate optocouplers.
H

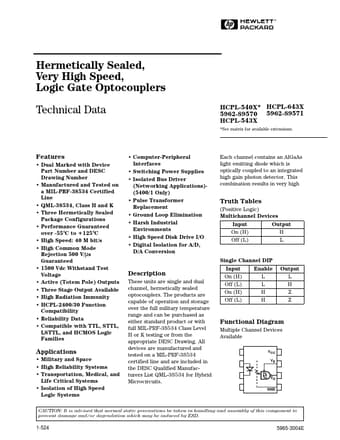

Hermetically Sealed, Very High Speed, Logic Gate Optocouplers
Technical Data
HCPL-540X
* HCPL-643X 5962-89570 5962-89571 HCPL-543X
*See mat.
