* 5 kV/µs Minimum Common Mode Rejection (CMR) at VCM = 50 V for HCPL-X601/ X631, HCNW2601 and 10 kV/µs Minimum CMR at VCM = 1000 V for HCPLX611/X661, HCNW2611
* High Speed: 10 MBd Typical
* LSTTL/TTL Compatible
* Low Input Current Capability: 5 mA
* Guaranteed
HCPL-2611 Datasheet (244.54 KB)
HCPL-2611
HP
244.54 KB
High speed ttl compatible optocouplers.
H

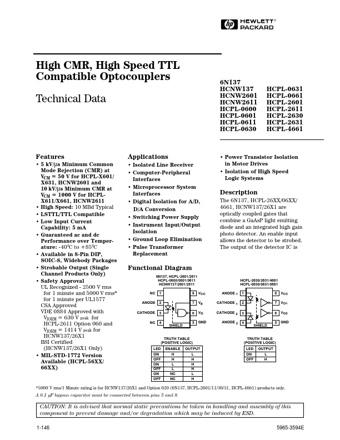

High CMR, High Speed TTL Compatible Optocouplers
Technical Data
6N137 HCNW137 HCNW2601 HCNW2611 HCPL-0600 HCPL-0601 HCPL-0611 HCPL-0630
HCPL-0631.
